12 1/2 XHR 6163 (26003) Size High-RPM PDC Drill Bit for Soft Formations - XHR Series Polycrystalline Diamond Compact Drill Bit
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API、ISO 9001 |
| Model Number | 12 1/2 XHR 6163 (26003) |
| Document | 12 1.2 XHR 6163 (26003).pdf |
| Minimum Order Quantity | 1 Picece(MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/P,T/T, |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Grade | GI | IADC Code | S222 |
|---|---|---|---|
| Body Type | STEEL | Face | 76 |
| Gauge | 52 | Updrill | 6 |
| Nozzle Type& Count | M*9 | Chip Removal Groove Area Ratio | 67.6% |
| API Connection | 6-5/8REG | Make-Up TQ | 50.3-57.5KN.m |
| Gauge Length | 75mm | Make-Up Length | 318mm |
| Approximate Shipping Weight | 95kg | Recommended Weight On Bit | 872mm^2 |
| Highlight | PDC drill bit with warranty,Xingtong PDC drill bit 12 1/2,XHR 6163 PDC drill bit |
||
Product Description

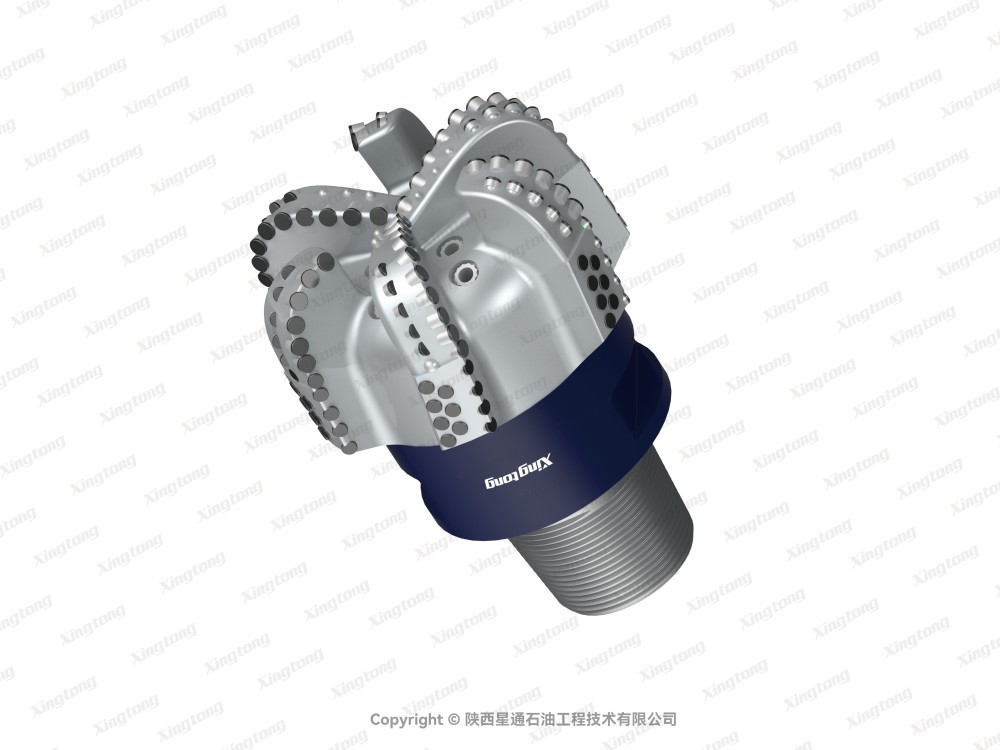

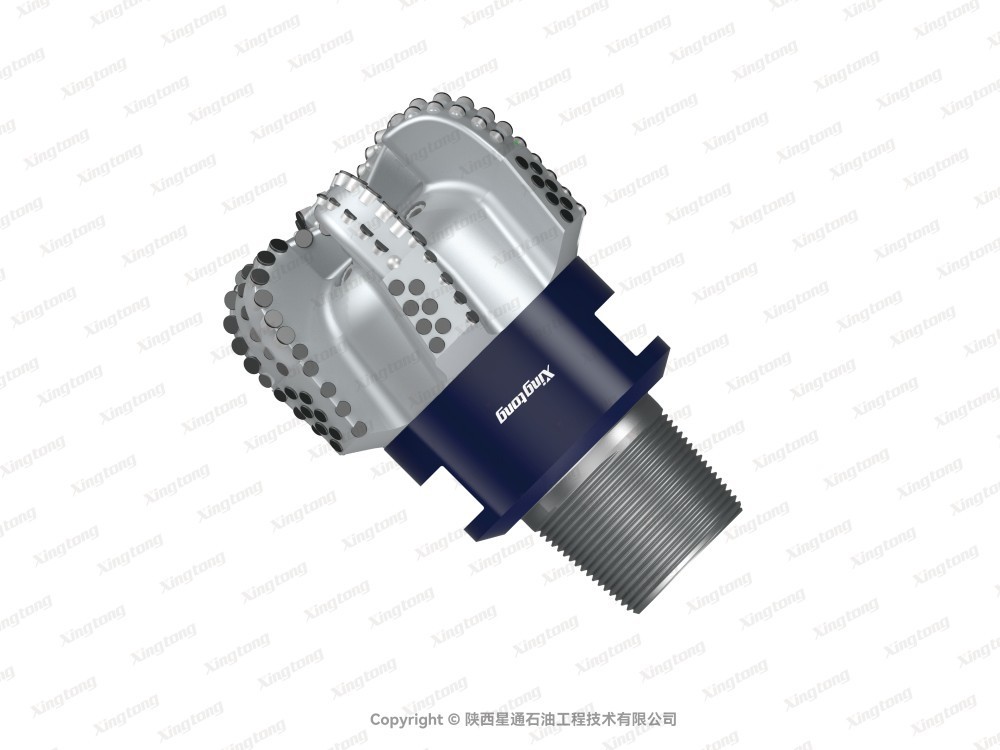

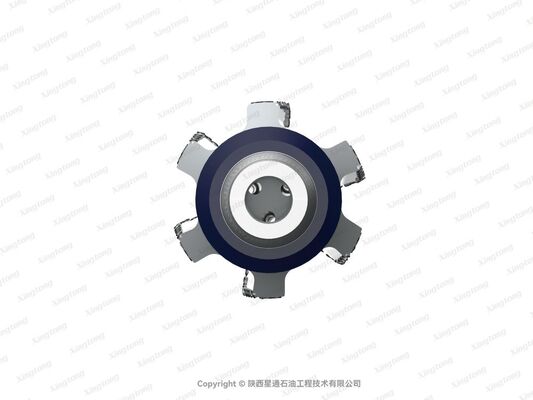

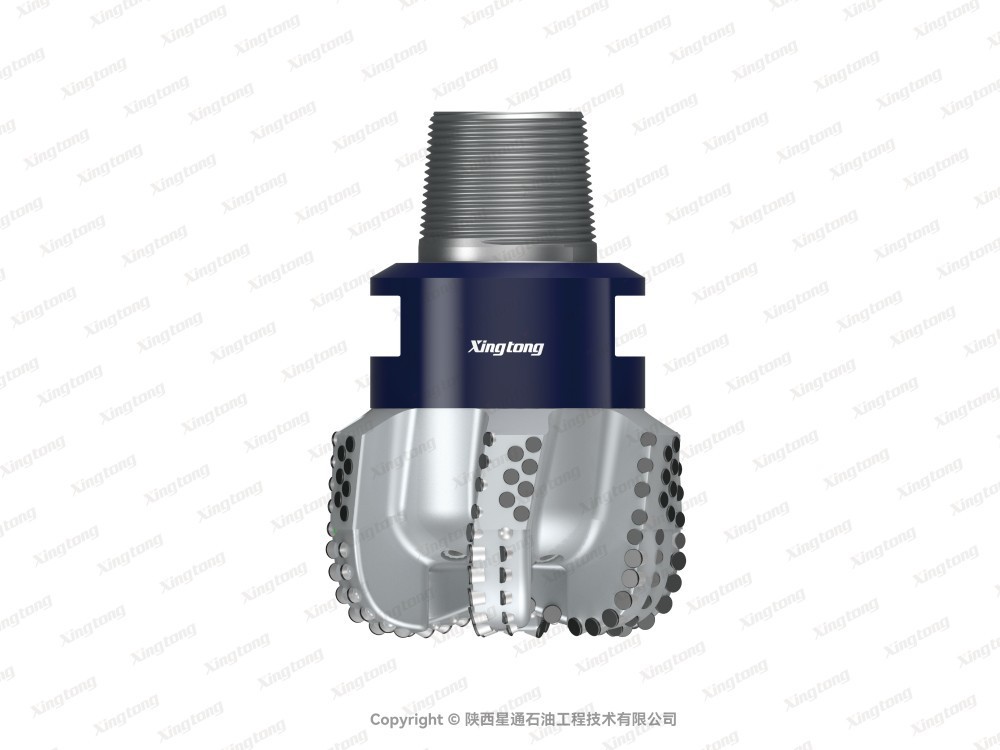

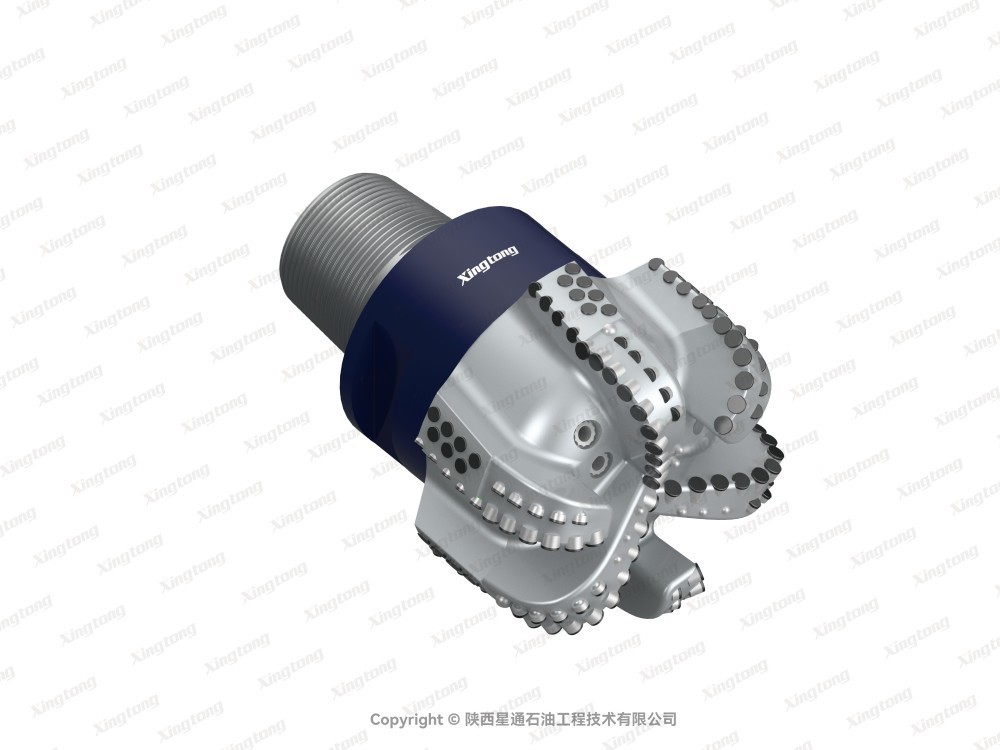

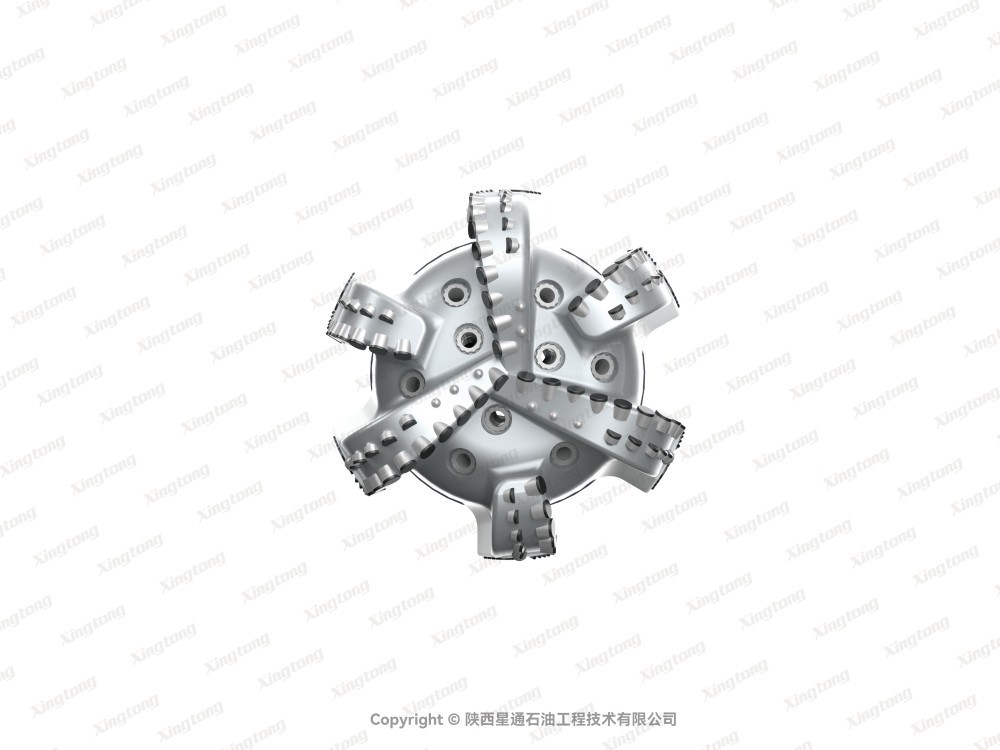

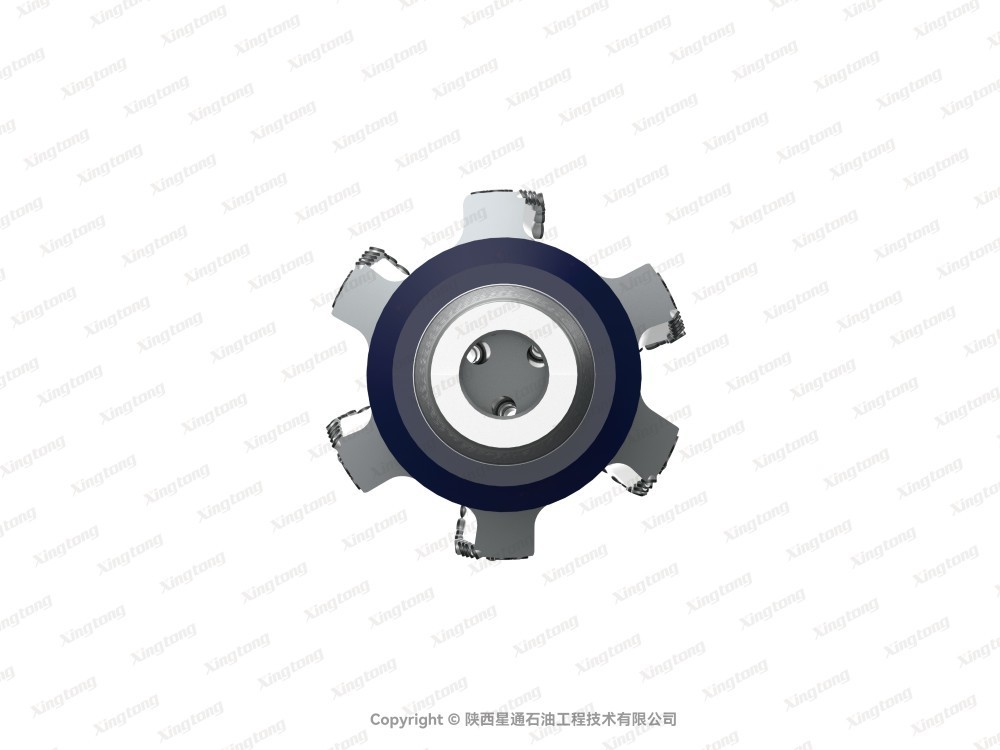

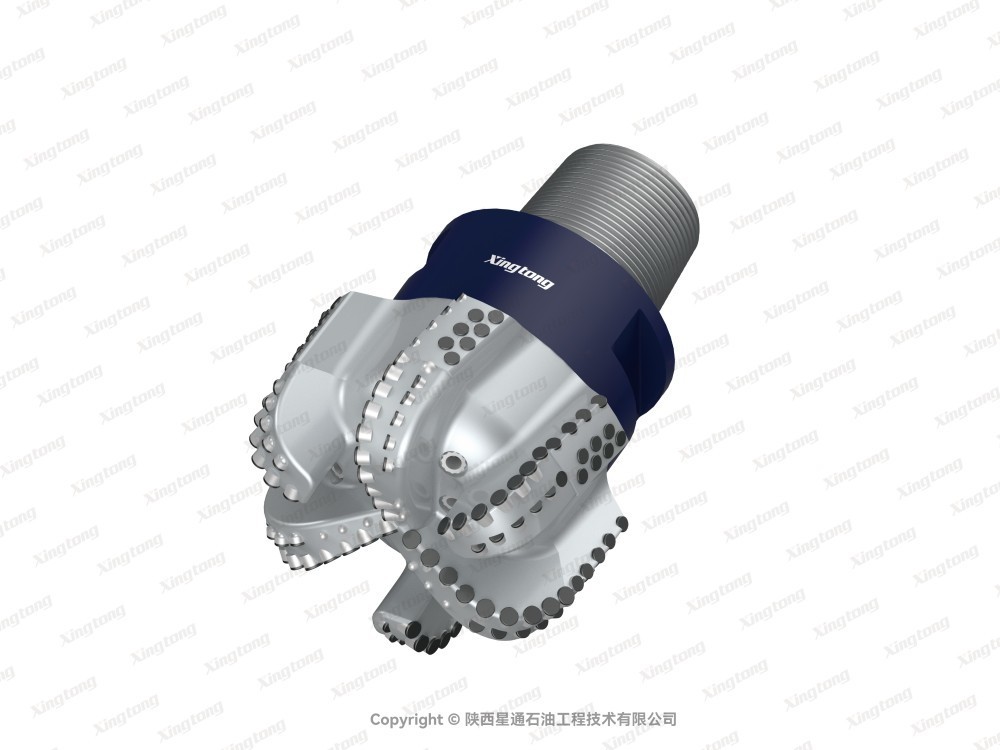

Xingtong Drill Bit 12 1/2 XHR 6163 (26003)
Product Positioning
The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.
Technical Highlights
- Optimized for high-speed drilling in soft geological formations
- Hybrid matrix with irregular cutting teeth geometry enhances rock-breaking efficiency while increasing cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
- High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations targeting the highest possible mechanical drilling rate.
