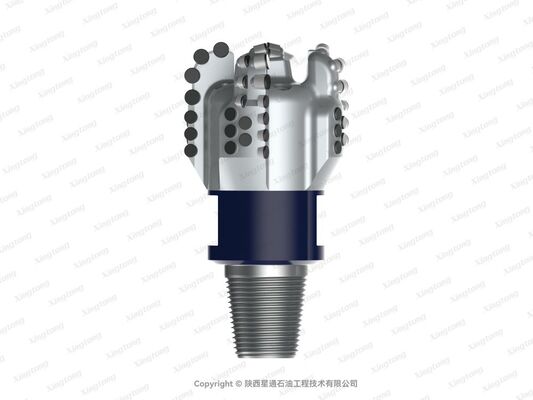

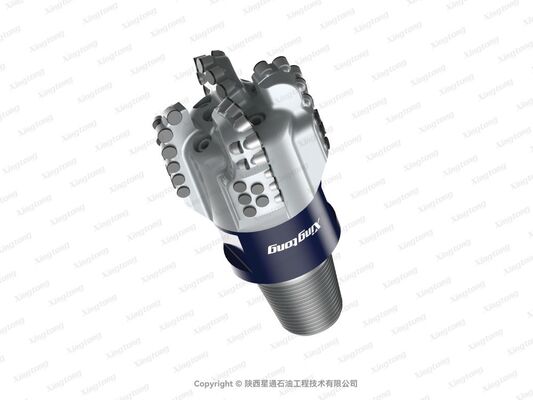

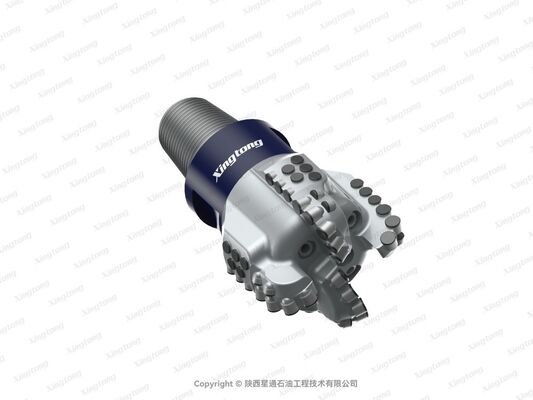

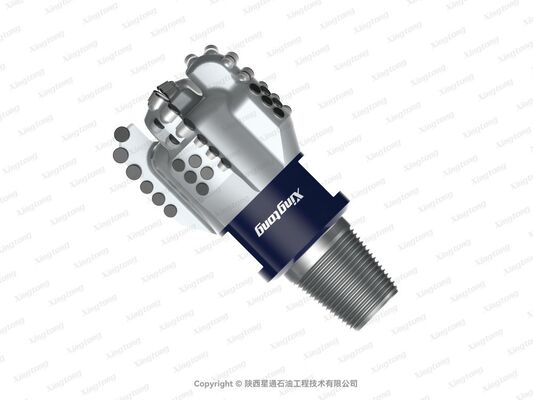

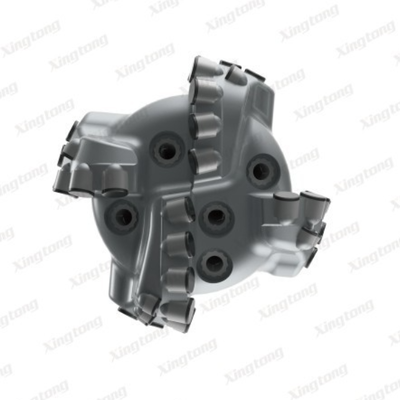

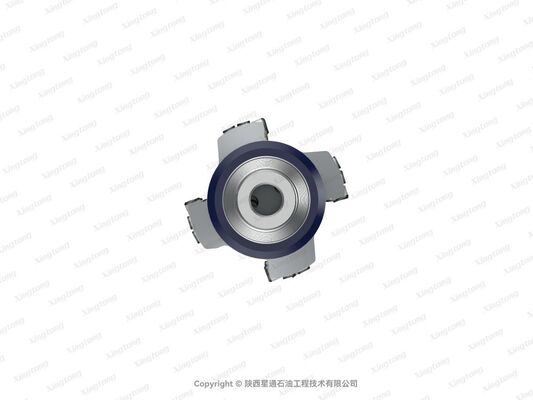

6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics

  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
  • 6 1/2 XHR S 4164 M(26001) 6 1/2 Inch High RPM PDC Drill Bit for Soft Formations with Steel Body and Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 1/2 XHR S 4164 M(26001)
Document 6 1.2 XHR S 4164 M(26001).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S223
Body Type STEEL Face 26
Gauge 33 Updrill 4
Nozzle Type & Count M*5 Chip Removal Groove Area Ratio 65.8%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 52mm Make-Up Length 223mm
Approximate Shipping Weight 20kg Recommended Weight On Bit (Maximum Acceptable) 10-12T(78T)
Total Flow Area 289mm^2
Highlight

PDC drill bit 6 1/2 size

,

Xingtong PDC drill bit XHR

,

PDC drill bit S 4164 M
Leave a Message
Product Description
Xingtong Drill Bit 6 1/2 XHR S 4164 M(26001)
Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, resulting in significantly increased drilling speed.

Technical Highlights
  • Optimized for high-speed drilling performance in soft formations
  • Hybrid matrix cutting teeth with irregular geometry enhance rock-breaking efficiency while accelerating cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations targeting maximum mechanical drilling rate performance.
