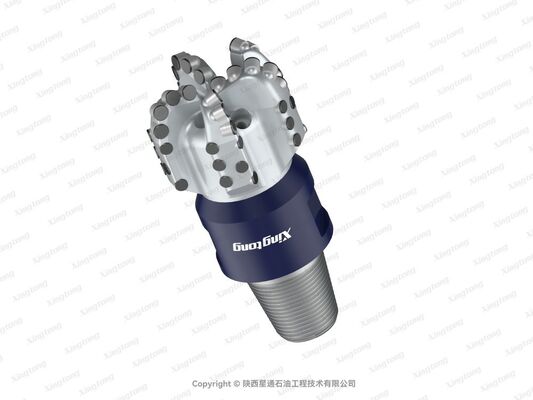

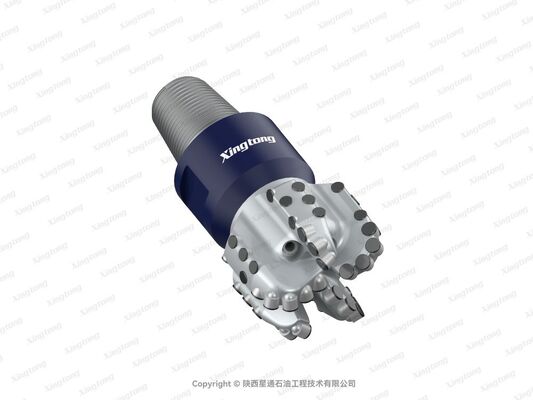

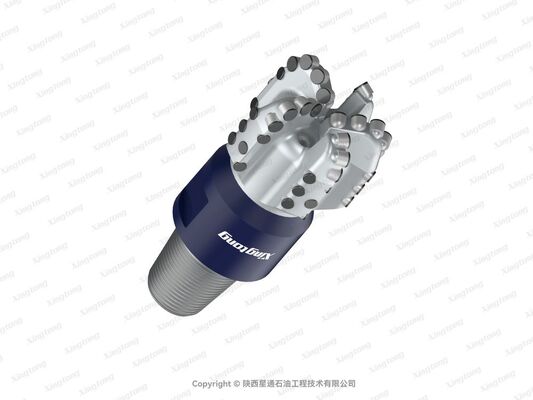

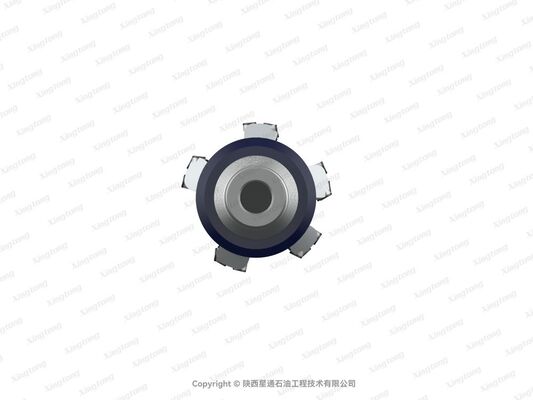

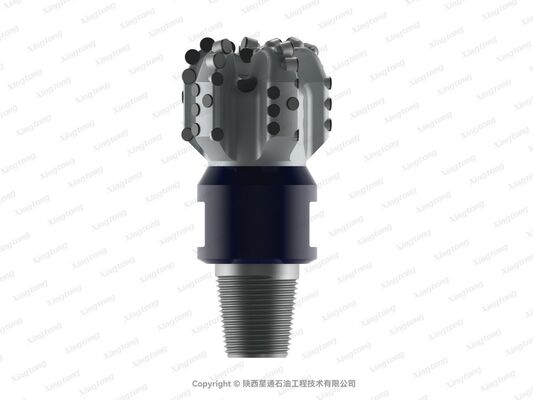

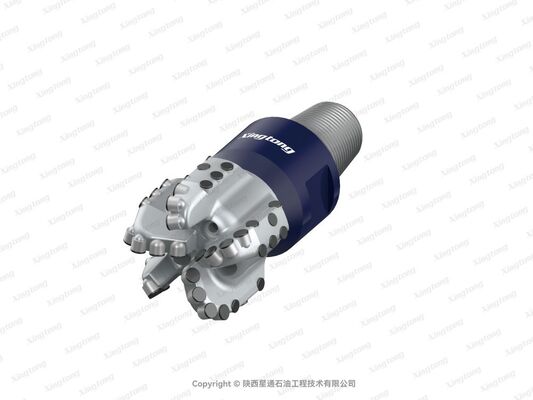

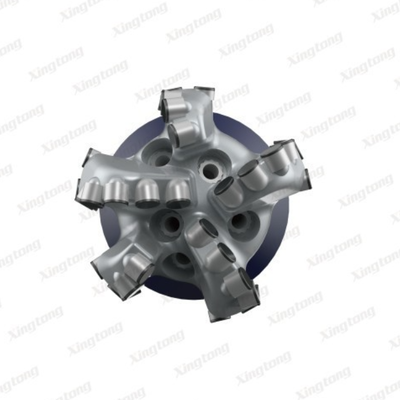

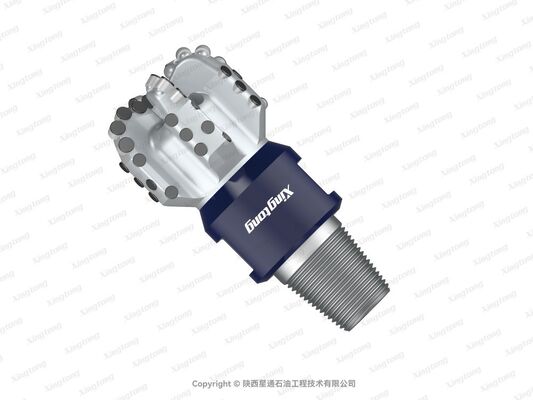

6 XHR S 5167 M(24025) High-RPM PDC Drill Bit for High-Speed Drilling in Soft Formations
6 XHR S 5167 M(24025) High-RPM PDC Drill Bit for High-Speed Drilling in Soft Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
6 XHR S 5167 M(24025)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 6 XHR S 5167 M(24025) Product Positioning The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and ...
Product Custom Attributes
Highlight
PDC drill bit for hard rock
,Xingtong M(24025) drill bit
,6 XHR S 5167 PDC bit
Cutter Grade:
GI
IADC Code:
S322
Body Type:
STEEL
Face:
22
Gauge:
20
Updrill:
5
Nozzle Type & Count:
M*5
Chip Removal Groove Area Ratio:
63.4%
API Connection:
3-1/2REG
Make-Up TQ:
7.1-11.5KN.m
Gauge Length:
51mm
Make-Up Length:
231mm
Recommended Weight On Bit（Maximum Acceptable）:
10-12T （78T）
Total Flow Area:
289mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 6 XHR S 5167 M(24025)
Product Positioning
The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock fragmentation and efficient cuttings removal, resulting in significantly accelerated drilling performance.
Technical Highlights
- Optimized for high-speed drilling applications in soft formations
- Hybrid matrix cutting teeth with irregular geometry enhance rock-breaking efficiency while improving cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
- High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for applications targeting maximum achievable mechanical drilling rates.
