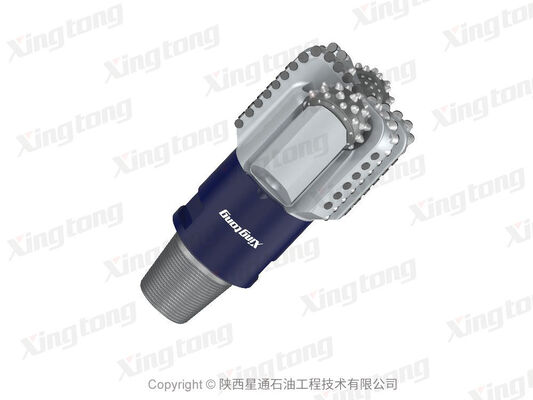

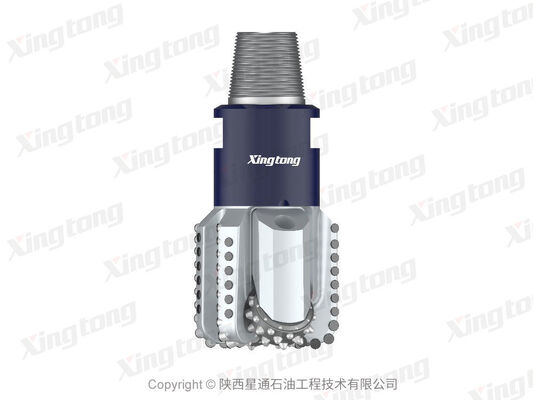

6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics

  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 6 1/2 XHR S 5167 A(24040) High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 1/2 XHR S 5167 A(24040)
Document 6 1.2 XHR S 5167 A(24040).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,T/T,D/P,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S422
Body Type STEEL Face 26
Gauge 23 Updrill 5
Nozzle Type & Count M*5 Chip Removal Groove Area Ratio 59.5%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 51mm Make-Up Length 226mm
Approximate Shipping Weight 21kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 289mm^2
Highlight

PDC drill bit with warranty

,

Xingtong PDC drill bit

,

6 1/2 inch drill bit
Leave a Message
Product Description
Xingtong Drill Bit 6 1/2 XHR S 5167 A(24040)
Positioning

The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to achieve superior rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver efficient rock fragmentation and rapid cuttings removal, significantly accelerating drilling speed.

Technical Highlights
  • Specifically designed for high-speed drilling applications in soft formations
  • Hybrid matrix with optimized irregular cutting teeth configuration enhances rock-breaking efficiency while increasing cuttings transport velocity
  • Nozzles and flow passages engineered through Computational Fluid Dynamics (CFD) design provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body construction allows for thinner cutter blade thickness, preventing interference at the blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed for operations aiming to achieve the highest possible mechanical drilling rate while maintaining operational efficiency.
