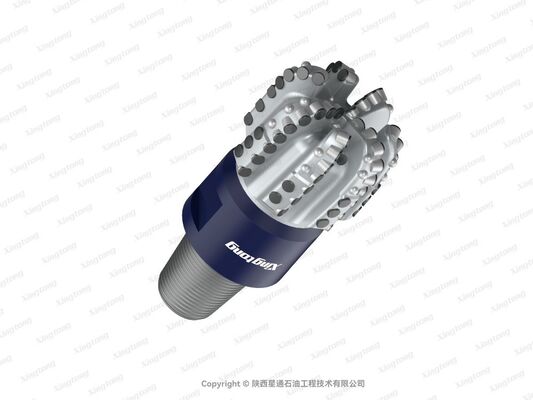

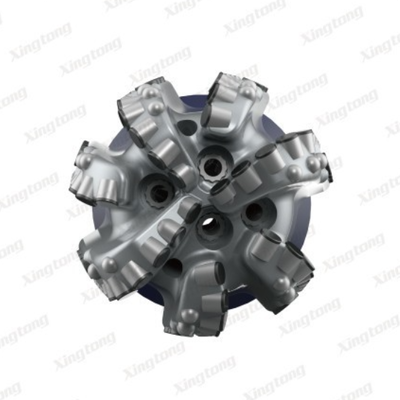

6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations

  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
  • 6 XH S 7139 AS(24024) PDC Drill Bit with GI Cutter Grade and 3-1/2REG API Connection for Hard Formations
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XH S 7139 AS(24024)
Document 6 XH S 7139 AS(24024).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S432
Body Type STEEL Face 37
Gauge 33 Updrill 7
Nozzle Type & Count M*4、D*2 Chip Removal Groove Area Ratio 59.8%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 69mm Make-Up Length 231mm
Approximate Shipping Weight 21kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 322mm^2
Highlight

PDC drill bit with warranty

,

Xingtong PDC drill bit

,

6 XH S 7139 AS drill bit
Leave a Message
Product Description
Xingtong Drill Bit 6 XH S 7139 AS(24024)
Product Positioning

The XH series represents Xingtong's high-durability drill bit lineup engineered specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely hard formations.

Technical Highlights
  • Suitable for hard formations to enhance drill bit life and penetration rate
  • Optimized crown geometry ensures uniform load distribution, reduces load on individual teeth, and lowers the risk of core gouging
  • High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
  • Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions

Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
