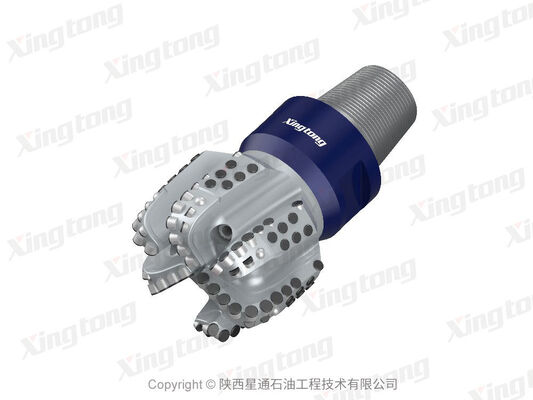

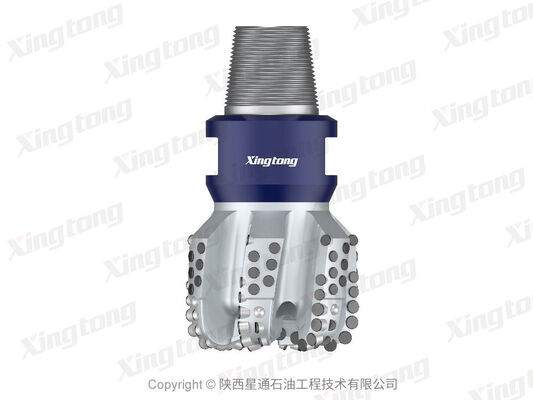

8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics

  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
  • 8 1/2 XHR S 6164 AS(24019) Size High-RPM PDC Drill Bit for Soft Formations with Optimized Hydraulics
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 8 1/2 XHR S 6164 AS(24019)
Document 8 1.2 XHR S 6164 AS(24019).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S223
Body Type STEEL Face 46
Gauge 48 Updrill 6
Nozzle Type & Count M*6 Chip Removal Groove Area Ratio 59.5%
API Connection 4-1/2REG Make-Up TQ 17.0-26.4KN.m
Gauge Length 75mm Make-Up Length 287mm
Approximate Shipping Weight 29kg Recommended Weight On Bit（Maximum Acceptable） 14-16T（133T）
Total Flow Area 582mm^2
Highlight

PDC drill bit 8 1/2 size

,

Xingtong XHR S drill bit

,

PDC drill bit with warranty
Leave a Message
Product Description
Xingtong Drill Bit 8 1/2 XHR S 6164 AS(24019)
Product Positioning

The XHR series is a high-RPM drill bit engineered specifically for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP) in soft geological conditions, this drill bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, resulting in significantly increased drilling speeds.

Technical Highlights
  • Optimized for high-speed drilling performance in soft formations
  • Hybrid matrix with irregularly shaped cutting teeth enhances rock-breaking efficiency while accelerating cuttings transport velocity
  • CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
  • High-strength steel body enables thinner cutter blade design, preventing interference at blade rear during high mechanical drilling rates
Applicable Operating Conditions

Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed to achieve the highest possible mechanical drilling rate in targeted applications.
