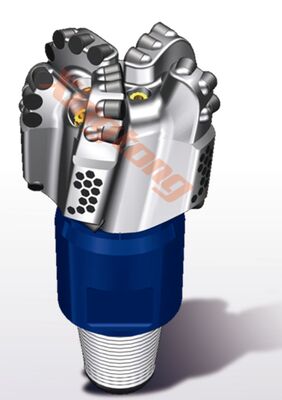

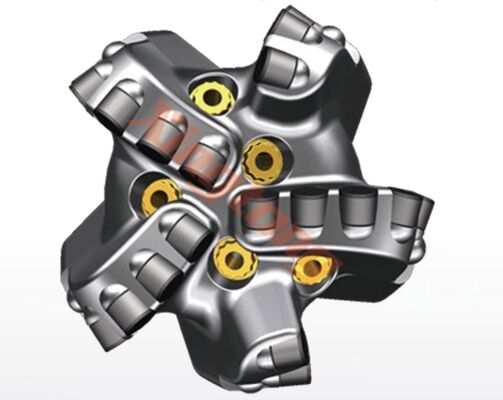

High Speed Drilling 26 Cutter PDC Drill Bit for Soft Formations Diamond Core Drill Bit
High Speed Drilling 26 Cutter PDC Drill Bit for Soft Formations Diamond Core Drill Bit
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
6.5″ 165.1mm XHR 5163S
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Designed for high-speed drilling in soft formations, the XHR5163S 6.5" PDC bit features an optimized cutter layout, CFD-designed hydraulics and a high-strength steel body for higher ROP, efficient cuttings removal and stable drilling performance.
Product Custom Attributes
Highlight
High Speed dth drilling bits
,dth drilling bits 26 Cutter
,Soft Formations pdc core drill bits
Cutter Type:
GI
IADC Code:
S323
Body Type:
STEEL
Total Cutter Count:
26
Face:
15
Gauge:
6
Updril:
5
Nozzle Type & Count:
M*3
Junk Slot Area (sq Mm):
6864
Normalized Face Volume:
55%
API Connection:
3-1/2 REG.pin
Make-Up TQ:
7-10KN.m
Gauge Length:
57mm
Make-Up Length:
239mm
Approximate Shipping Weight:
47kg
Product Description
Detailed Specifications & Features
High Speed DTH Drilling Bits 26 Cutter Soft Formations PDC Core Drill Bits
PDC Drill Bits 6.5″ 165.1mm XHR 5163S for High-Speed Drilling in Soft Formations
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing
- Optimize nozzles and junk slot design by using CFD to speed up cutting moving
- The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Drop In Cutters on Gauge Pads
- Radius Hex TSP on Gauge Pads
Important Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
