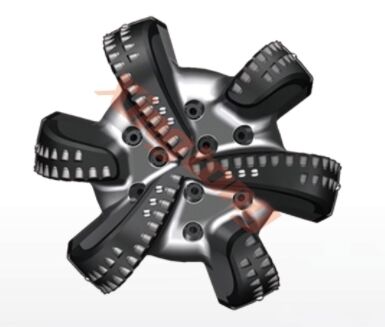

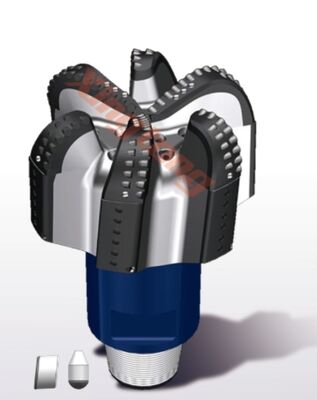

17 1/2″ 444mm XHR 6163ML API 7-1 Standard Steel Body PDC Drill Bit for Soft Formation Drilling
17 1/2″ 444mm XHR 6163ML API 7-1 Standard Steel Body PDC Drill Bit for Soft Formation Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
17 1/2″ 444mm XHR6163
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
PDC Drill Bit 17 1/2″ 444mm XHR 6163ML Inch API 7-1 Standard Factory Drill Bit Steel Body PDC Bits XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal Optimize nozzles and junk slot design using ...
Product Custom Attributes
Highlight
17.5inch Tricone Rock Drill Bits
,444mm Tricone Rock Drill Bits
,tricone roller bit 103 Cutters
Cutter Type:
GII
IADC Code:
S223
Body Type:
STEEL
Total Cutter Count:
103
Face:
31+60
Gauge:
6
Updril:
6
Nozzle Type&count:
L*9
Junk Slot Area (sq Mm):
53716
Normalized Face Volume:
28.51%
API Connection:
7-5/8 REG.pin
Make-Up TQ:
65-93KN.m
Gauge Length:
152mm
Make-Up Length:
721mm
Approximate Shipping Weight:
554kg
Product Description
Detailed Specifications & Features
PDC Drill Bit 17 1/2″ 444mm XHR 6163ML Inch API 7-1 Standard Factory Drill Bit Steel Body PDC Bits
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve drilling efficiency and enhance cuttings removal
- Optimize nozzles and junk slot design using CFD to accelerate cutting movement
- High strength steel body with thinner blades prevents back tail contact with formation during high ROP operations
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- PDC Domes on gauge pads
Important Notes
- Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G standards
- Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customers
- Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
