PDC High Speed Casing Running Reaming Bit Ppolycrystalline Diamond Compact
| Brand Name | XINGTONG |
|---|---|
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2 XSTJ 416 R |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | ,L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GII | Body Type | STEEL Body |
|---|---|---|---|
| Total Cutter Count | 12 | Nozzle Type & Count | 4 |
| Junk Slot Area (sq Mm) | 11540 | Normalized Face Volume | 76% |
| API Connection | 4-1/2 REG.pin | Make-Up TQ | 16-24KN.m |
| Make-Up Length | 383mm | Approximate Shipping Weight | 20kg |
| Highlight | PDC rock drill bit API,Reaming Bit ISO9001,383mm polycrystalline diamond compact |
||
Product Description

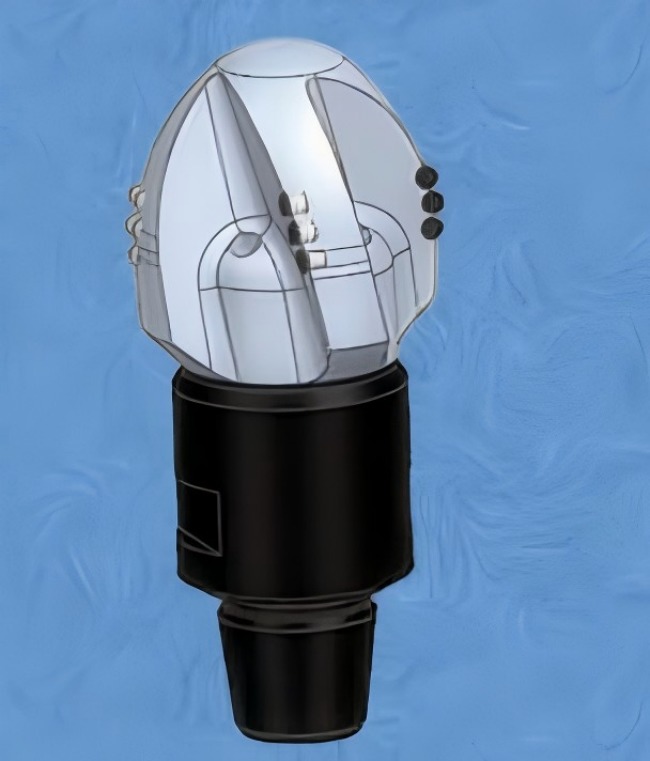

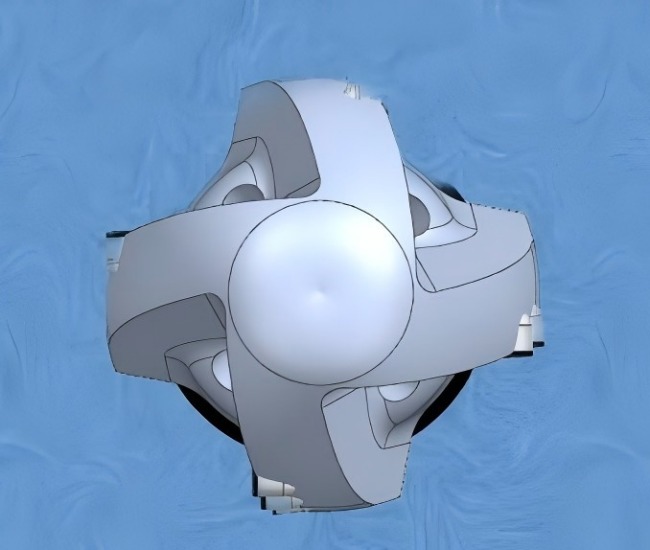

PDC High-Speed Casing Running & Reaming Bit | Polycrystalline Diamond Compact for Oilfield Drilling
XS Series Features
- Special structural design for special functional needs
Product Features
- A key tool to ensure the smooth flow and safety of the wellbore
- Milling cone structure
- It has the ability of grinding, milling and drilling, and can handle cement plugs, small metal falling objects, hard sand bridges and reduced diameter formations
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
