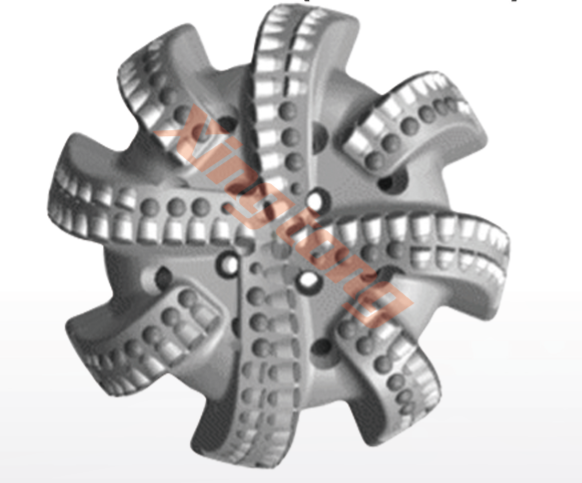

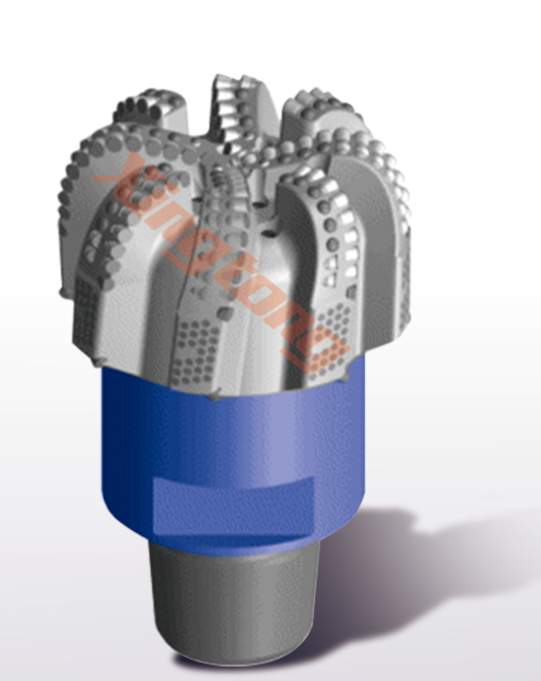

11 5/8″ 295mm PDC Drill Bits Oil Drilling PDC Drill Bits
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 11 5/8″ 295mm XH 8134B |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S434 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 132 |
| Face | 106 | Gauge | 18 |
| Updrill | 8 | Nozzle Type & Count | L*12 |
| Junk Slot Area (sq Mm) | 15870 | Normalized Face Volume | 40.32% |
| API Connection | 6-5/8REG.pin | Make-Up TQ | 50-59KN.m |
| Gauge Length | 76mm | Make-Up Length | 534mm |
| Approximate Shipping Weight | 208kg | ||
| Highlight | 11 5/8″PDC Rock Bit,295mm PDC Rock Bit,Oil Drilling PDC Drill Bits |
||
Product Description
PDC Drill Bits 11 5/8″ 295mm XH 8134B for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage.
- The optimized profile makes the load distribution more even to reduce the risk of ring out.
- High quality PDC were put on shoulder to improve wear and impact resistance
- Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
- Dual row cutting structrue
- Impact arrestors
- 1.6mm Stepped Gauge
- Efficient Backup Cutter Layout
- Drop In Cutters on Gauge Pads
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
