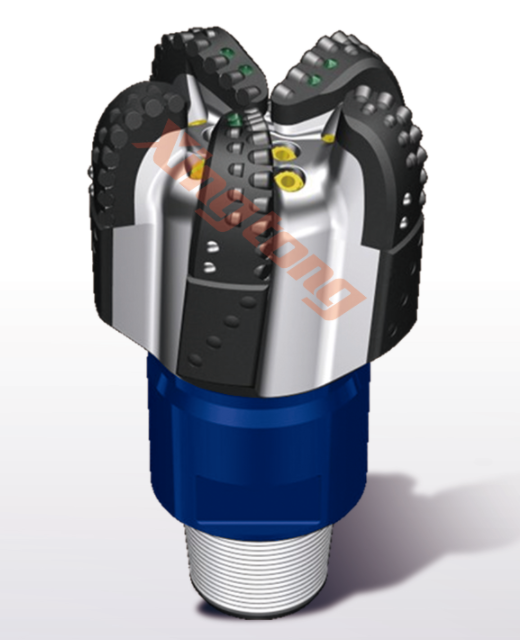

9 1/2inch 241mm PDC Rock Bit For Oil Drilling Pdc Cutter

  • 9 1/2inch 241mm PDC Rock Bit For Oil Drilling Pdc Cutter
  • 9 1/2inch 241mm PDC Rock Bit For Oil Drilling Pdc Cutter
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 9 1/2″ 241mm XH 5164
Minimum Order Quantity 1 Piece (MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Supply Ability Stable supply and support for bulk customization

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutter Type GI IADC Code S324
Body Type STEEL Total Cutter Count 69
Face 23+36 Gauge 10
Nozzle Type & Count L*7 Junk Slot Area (sq Mm) 20354
Normalized Face Volume 47.54% API Connection 6-5/8REG.pin
Make-Up TQ 50-59KN.m Gauge Length 102mm
Make-Up Length 613mm Approximate Shipping Weight 169kg
Highlight

9 1/2inch PDC Rock Bit

,

241mm PDC Rock Bit

,

Oil Drilling pdc cutter
Leave a Message
Product Description
PDC Drill Bits 9 1/2″ 241mm XH 5164 for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage.
  • The optimized profile makes the load distribution more even to reduce the risk of ring out.
  • High quality PDC were put on shoulder to improve wear and impact resistance.
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
  • Dual row cutting structure
  • 0.8mm Relieved Gauge
  • 1.6mm Stepped Gauge
  • Efficient Backup Cutter Layout
  • Drop In Cutters on Gauge Pads

                                                                                Note

  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
