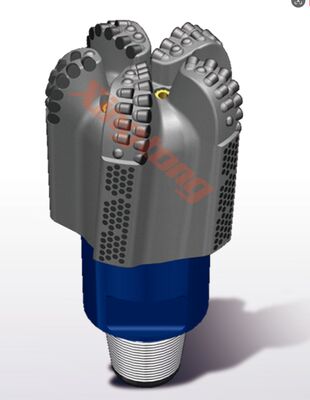

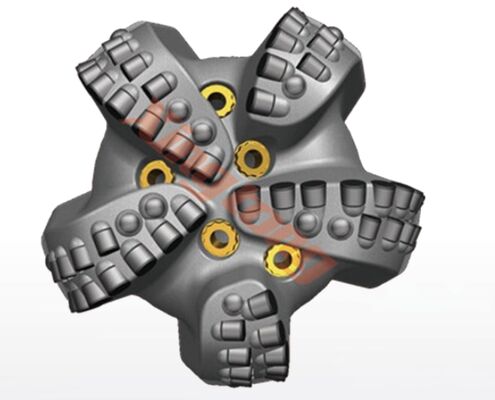

9 1/2in 241mm PDC Rock Drill Bit with 50-59KN.M Torque and Dual Row Cutting Structure for Oil Drilling
9 1/2in 241mm PDC Rock Drill Bit with 50-59KN.M Torque and Dual Row Cutting Structure for Oil Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
9 1/2″ 241mm XH 5164LM
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
8 Gauge PDC Rock Drill Bit - 9 1/2" (241mm) PDC Cutters for Drilling - 50-59 KN.M PDC Drill Bit 9 1/2″ 241mm XH 5164LM for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ...
Product Custom Attributes
Highlight
8 Gauge pdc rock drill bit
,pdc rock drill bit 9 1/2in
,241mm pdc cutters for drilling
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
57
Face:
19+30
Gauge:
8
Nozzle Type & Count:
L*5
Junk Slot Area (sq Mm):
13780
Normalized Face Volume:
49.64%
API Connection:
6-5/8REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
152mm
Make-Up Length:
565mm
Approximate Shipping Weight:
100kg
Product Description
Detailed Specifications & Features
8 Gauge PDC Rock Drill Bit - 9 1/2" (241mm) PDC Cutters for Drilling - 50-59 KN.M
PDC Drill Bit 9 1/2″ 241mm XH 5164LM for Oil Drilling in Super Hard Formations
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC cutters on shoulder to improve wear and impact resistance
- Special backup cutter layout improves bit durability while maintaining bit aggression
Product Features
- Passive element
- Dual row cutting structure
- Relieved gauge
- EDL tool gauge
- Drop in cutters on gauge pads
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
