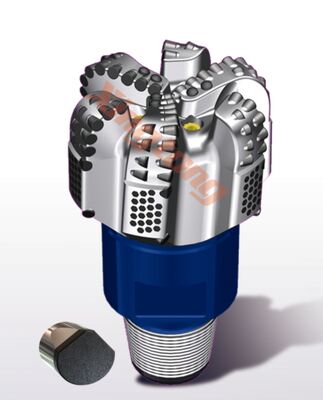

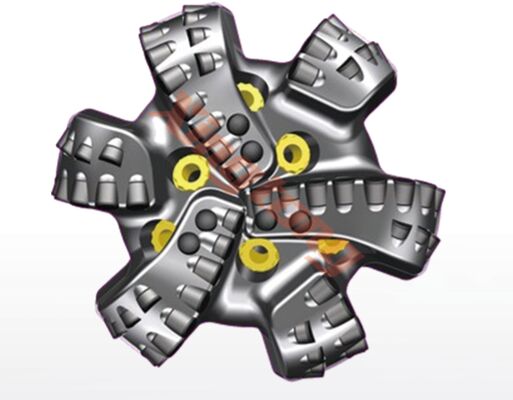

8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure

8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
Basic Properties
Place of Origin: CHINA
Brand Name: XINGTONG
Certification: API 、ISO 9001
Model Number: 8 3/4″ 222mm XH 6163A
Trading Properties
Minimum Order Quantity: 1 Piece（MOQ）
Price: Negotiable
Payment Terms: L/C,D/P,T/T,
Supply Ability: Stable supply and support for bulk customization.
Tags:

rock drill bit

hdd rock bits

PDC Drill Bits
Product Summary
8 3/4in 222mm PDC Drill Bit For Super Hard Formations Rock Drill Bit PDC Drill Bits 8 3/4″ 222mm XH 6163A for Oil Drilling in Super Hard Formations XH Series Features Suitable for increasing durability and footage Optimized profile makes load distribution more even to reduce the risk of ring out ...
Product Custom Attributes
Highlight

8 3/4in pdc drill bit

,

222mm pdc drill bit

,

Hard Formations rock drill bit

Cutter Type:
GI
IADC Code:
S332
Body Type:
STEEL
Total Cutter Count:
76
Face:
56
Gauge:
14
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
10148
Normalized Face Volume:
45.89%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
64mm
Make-Up Length:
446mm
Approximate Shipping Weight:
80kg
Product Description
Detailed Specifications & Features
8 3/4in 222mm PDC Drill Bit For Super Hard Formations Rock Drill Bit
PDC Drill Bits 8 3/4″ 222mm XH 6163A for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer
  • Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
