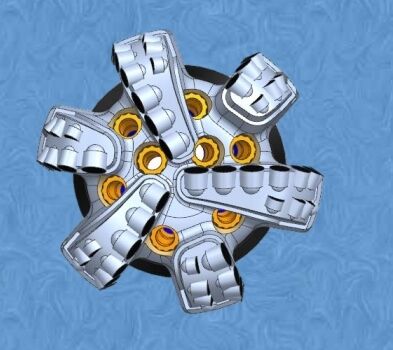

Steel Body Six-Blade 8 3/4" (222mm) PDC Rock Bit for Oil & Gas Well Drilling
Steel Body Six-Blade 8 3/4" (222mm) PDC Rock Bit for Oil & Gas Well Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
8 3/4″ 222mm XD 6194BMR
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Made in China Steel Body Six-Blade 8 3/4" (222mm) Model XD6194 BMR PDC Oil & Gas Well Drilling Bit XD Series Features Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor applications Shank-less design reduces make-up length by 40% compared to ...
Product Custom Attributes
Highlight
Steel Body PDC Rock Bit
,PDC Rock Bit 8 3/4in
,222mm hard rock drill bits
Cutter Type:
GI
IADC Code:
S433
Body Type:
STEEL Body
Total Cutter Coun:
70
Face:
54
Gauge:
10
Updrill:
6
Nozzle Type & Count:
L*6
Junk Slot Area (sq Mm):
11750
Normalized Face Volume:
44.7%
API Connection:
4-1/2 REG.pin
Make-Up TQ:
16-24KN.m
Gauge Length:
86mm
Make-Up Length:
204mm
Approximate Shipping Weight:
35kg
Product Description
Detailed Specifications & Features
Made in China Steel Body Six-Blade 8 3/4" (222mm) Model XD6194 BMR PDC Oil & Gas Well Drilling Bit
XD Series Features
- Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor applications
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even under higher than normal weight-on-bit conditions
- Maximum dogleg severity: ≥30°/30m with bent motor, ≥15°/30m with RSS
Product Features
- 0.8mm Relieved Gauge
- Ultra-short body design
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- Adaptable to rotary guides
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G standards.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
