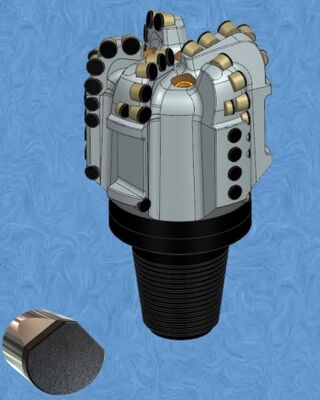

Steel Body Directional Drill Bits Five Blade 6 1/2inch 165.1mm Pdc Core Drill Bits
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 6 1/2″ 165.1mm XD5164BRS |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | ,L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL Body | Total Cutter Coun | 52 |
| Face | 28 | Gauge | 19 |
| Updrill | 5 | Nozzle Type & Count | M*5 |
| Junk Slot Area (sq Mm) | 10016 | Normalized Face Volume | 48.6% |
| API Connection | 3-1/2 REG.pin | Make-Up TQ | 7-10KN.m |
| Gauge Length | 76mm | Make-Up Length | 179.5mm |
| Approximate Shipping Weight | 22kg | ||
| Highlight | Steel Body Directional Drill Bits,Directional Drill Bits Five Blade,165.1mm pdc core drill bits |
||
Product Description
Made in China Steel Body Five-Blade 6 1/2" (165.1mm) Model XD5164BRS PDC Oil & Gas Well Drilling Bit (Petroleum & Natural Gas Drilling Tool)
XH Series Features
- Suitable for improving the steer ability and overall drilling efficiency for both RSS and bent motor.
- Shank-less design let the make-up length is 40% shorter than the conventional bit's, which improve the steer ability significantly.
- Unique depth of cut control design make the bit tool face control more than excellent, even when the WOB is higher than normal condition.
- Drilling with bent motor, maximum DLS ≥30°/30m.Drilling with RSS , maximum DLS ≥15°/30m.
Product Features
- Up-Drill Cutters on Gauge Pads
- 0.8mm Re'lieved Gauge
- Dual row cutting structrue
- 4Dshaped cutter
- Adaptable to rotary guides
- Ultra-short body
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
