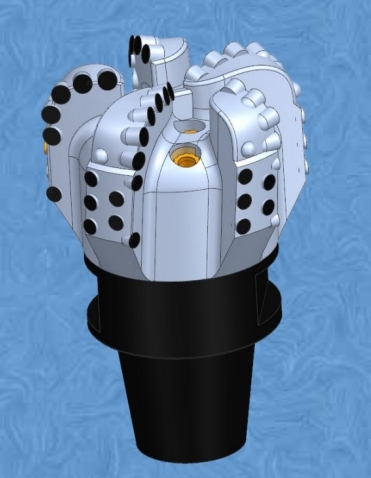

8 1/2 Inch Directional Drill Bits 62mm PDC Diamond Bit API Standard
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2″ 216mm XD 5163 |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL Body | Total Cutter Coun | 56 |
| Face | 26 | Gauge | 25 |
| Updrill | 5 | Nozzle Type & Count | L*7 |
| Junk Slot Area (sq Mm) | 10812 | Normalized Face Volume | 65.4% |
| API Connection | 4-1/2 REG.pin | Make-Up TQ | 16-24KN.m |
| Gauge Length | 62mm | Make-Up Length | 227mm |
| Approximate Shipping Weight | 36kg | ||
| Highlight | 8 1/2 inch Directional Drill Bits,Directional Drill Bits 62mm,pdc diamond bit API Standard |
||
Product Description
8 1/2" Steel Body PDC Directional Drill Bit XD5163 API 7-1 Standard
Factory Promotion: Mining Well PDC Directional Drilling Bit 8 1/2" (216mm) XD5163
API 7-1 Standard Compliant Steel Body PDC Bit
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GI |
| IADC code | S324 |
| Body type | STEEL Body |
| Total Cutter Count | 56 |
| Face | 26 |
| Gauge | 25 |
| Updrill | 5 |
| Nozzle type & count | L*7 |
| Junk slot area (sq mm) | 10812 |
| Normalized Face Volume | 65.4% |
| API Connection | 4-1/2 REG.pin |
| Make-Up TQ | 16-24KN.m |
| Gauge Length | 62mm |
| Make-Up length | 227mm |
| Approximate Shipping Weight | 36kg |
XD Series Features
- Suitable for improving steerability and overall drilling efficiency for both RSS and bent motor applications
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even under higher than normal WOB conditions
- Maximum DLS ≥30°/30m when drilling with bent motor and ≥15°/30m with RSS
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- All-in-one design
Note: The recommended top-buckle torque is set according to the joint dimensions with reference to API7G. All technical performance specifications will be implemented as agreed between Xingtong and the customer. Product images are for reference only - please contact Skycom engineers for detailed technical parameters.
