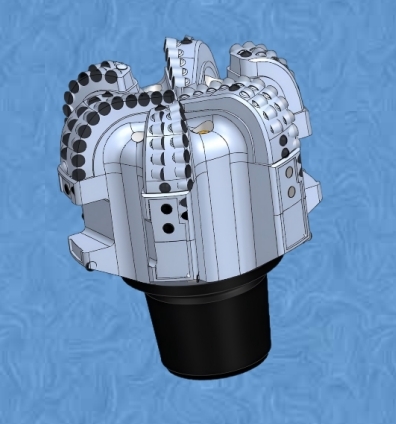

12 1/4in Directional Drill Bits 311mm Short Body Pdc Drilling Bits
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 12 1/4″ 311mm XD 6164BDR |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL Body | Total Cutter Count | 106 |
| Face | 80 | Gauge | 20 |
| Updrill | 6 | Nozzle Type & Count | L*9 |
| Junk Slot Area (sq Mm) | 26974 | Normalized Face Volume | 60.77% |
| API Connection | 6-5/8 REG.pin | Make-Up TQ | 50-59KN.m |
| Gauge Length | 111mm | Make-Up Length | 251mm |
| Approximate Shipping Weight | 126kg | ||
| Highlight | 12 1/4in Directional Drill Bits,Directional Drill Bits 311mm,Short Body pdc drilling bits |
||
Product Description
Directional Drill Bits 12 1/4″ 311mm XD 6164BDR – Ultra-Short Body Design, 40% Shorter Make-Up Length, Enhanced Steering
Steel Body Six-Blade12 1/4″ 311mm XD 6164BD BMR PDC Oil & Gas Well Drilling Bit
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GI |
| IADC code | S324 |
| Body type | STEEL Body |
| Total Cutter Count | 106 |
| Face | 80 |
| Gauge | 20 |
| Updrill | 6 |
| Nozzle type & count | L*9 |
| Junk slot area (sq mm) | 26974 |
| Normalized Face Volume | 60.77% |
| API Connection | 6-5/8 REG.pin |
| Make-Up TQ | 50-59KN.m |
| Gauge Length | 111mm |
| Make-Up Length | 251mm |
| Approximate Shipping Weight | 126kg |
Product Description
The Steel Body Six-Blade12 1/4″ 311mm XD 6164BD BMR PDC Oil & Gas Well Drilling Bit is designed for petroleum and natural gas drilling operations.
XD Series Features
- Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor
- Shank-less design makes the make-up length 40% shorter than conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even with higher than normal WOB
- Drilling with bent motor: maximum DLS ≥30°/30m
- Drilling with RSS: maximum DLS ≥15°/30m
Product Features
- 1-Piece Bit construction
- 0.8mm Relieved Gauge
- 1.6mm Stepped Gauge
- Up-Drill Cutters on Gauge Pads
- 4D Sharpe cutter technology
Important Notes
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- Technical performance will be fully implemented according to terms agreed between Xingtong and the customer
- Product images are for reference only - contact Skycom engineers for detailed technical parameters
