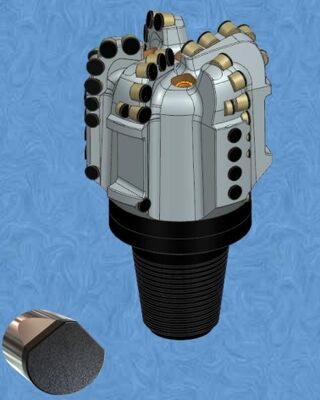

Steel Body Five Blade 6 1/2inch 165.1mm PDC Core Drill Bits for Oil & Gas Well Drilling
Steel Body Five Blade 6 1/2inch 165.1mm PDC Core Drill Bits for Oil & Gas Well Drilling
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
6 1/2″ 165.1mm XD5164BRS
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Steel Body Directional Drill Bits Five Blade 6 1/2inch 165.1mm PDC Core Drill Bits Made in China Steel Body Five-Blade 6 1/2" (165.1mm) Model XD5164BRS PDC Oil & Gas Well Drilling Bit (Petroleum & Natural Gas Drilling Tool) XH Series Features Suitable for improving the steer ability and overall ...
Product Custom Attributes
Highlight
Steel Body Directional Drill Bits
,Directional Drill Bits Five Blade
,165.1mm pdc core drill bits
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL Body
Total Cutter Coun:
52
Face:
28
Gauge:
19
Updrill:
5
Nozzle Type & Count:
M*5
Junk Slot Area (sq Mm):
10016
Normalized Face Volume:
48.6%
API Connection:
3-1/2 REG.pin
Make-Up TQ:
7-10KN.m
Gauge Length:
76mm
Make-Up Length:
179.5mm
Approximate Shipping Weight:
22kg
Product Description
Detailed Specifications & Features
Steel Body Directional Drill Bits Five Blade 6 1/2inch 165.1mm PDC Core Drill Bits
Made in China Steel Body Five-Blade 6 1/2" (165.1mm) Model XD5164BRS PDC Oil & Gas Well Drilling Bit (Petroleum & Natural Gas Drilling Tool)
XH Series Features
- Suitable for improving the steer ability and overall drilling efficiency for both RSS and bent motor
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steer ability
- Unique depth of cut control design provides excellent tool face control, even with higher than normal WOB conditions
- Drilling with bent motor: maximum DLS ≥30°/30m
- Drilling with RSS: maximum DLS ≥15°/30m
Product Features
- Up-Drill Cutters on Gauge Pads
- 0.8mm Relieved Gauge
- Dual row cutting structure
- 4D shaped cutter
- Adaptable to rotary guides
- Ultra-short body
Important Notes
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
