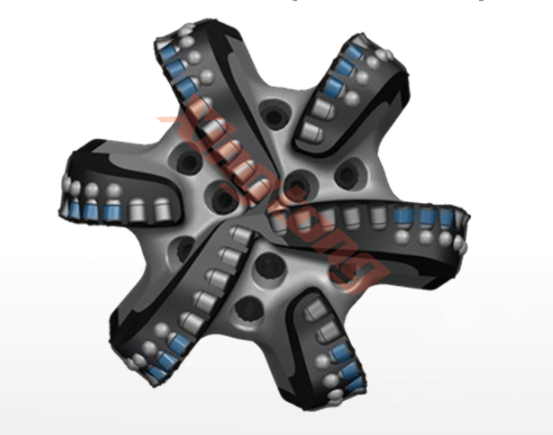

Steel Body PDC Drill Bit 10 Gauge 61 Cutter Carbide Rock Drill Bits
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 12 1/4″ 311mm XHR 6164 |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 61 |
| Face | 45 | Gauge | 10 |
| Updrill | 6 | Nozzle Type & Count | L*9 |
| Junk Slot Area (sq Mm) | 26974 | Normalized Face Volume | 60.77% |
| API Connection | 6-5/8REG.pin | Make-Up TQ | 50-59KN.m |
| Gauge Length | 127mm | Make-Up Length | 416mm |
| Approximate Shipping Weight | 192kg | ||
| Highlight | Steel Body PDC Drill Bit,PDC Drill Bit 10 gauge,61 Cutter carbide rock drill bits |
||
Product Description
PDC Drill Bits 12 1/4″ 311mm XHR 6164 (Steel Body) for High-Speed Drilling in Soft Formations
XHR Series Features
- Suitable for improving ROP in soft formation.
- Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
- Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
- The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
- 1piece Bit
- 0.8mm Relieved Gauge
- 1.6mm Stepped Gauge
- Up-Drill Cutters on Gauge Pads
- 4D shaped cutter
- Drop In Cutters on Gauge Pads
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
