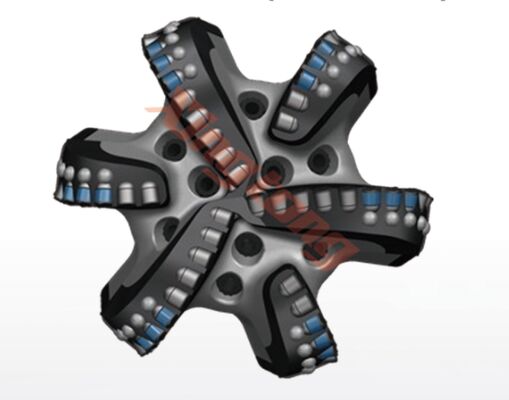

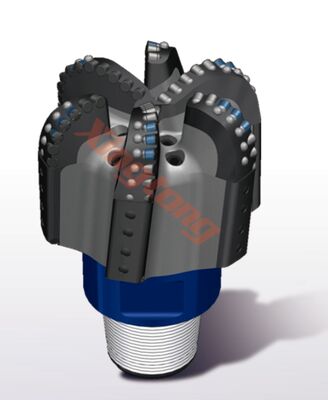

Steel Body PDC Drill Bit 10 Gauge 61 Cutter for High-Speed Drilling in Soft Formations
Steel Body PDC Drill Bit 10 Gauge 61 Cutter for High-Speed Drilling in Soft Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API 、ISO 9001
Model Number:
12 1/4″ 311mm XHR 6164
Trading Properties
Minimum Order Quantity:
1 Piece（MOQ）
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization.
Product Summary
Steel Body PDC Drill Bit 10 Gauge 61 Cutter Carbide Rock Drill Bits PDC Drill Bits 12 1/4″ 311mm XHR 6164 (Steel Body) for High-Speed Drilling in Soft Formations XHR Series Features Suitable for improving ROP in soft formation Optimize shaped cutter layout to improve the drilling efficiency and ...
Product Custom Attributes
Highlight
Steel Body PDC Drill Bit
,PDC Drill Bit 10 gauge
,61 Cutter carbide rock drill bits
Cutter Type:
GI
IADC Code:
S324
Body Type:
STEEL
Total Cutter Count:
61
Face:
45
Gauge:
10
Updrill:
6
Nozzle Type & Count:
L*9
Junk Slot Area (sq Mm):
26974
Normalized Face Volume:
60.77%
API Connection:
6-5/8REG.pin
Make-Up TQ:
50-59KN.m
Gauge Length:
127mm
Make-Up Length:
416mm
Approximate Shipping Weight:
192kg
Product Description
Detailed Specifications & Features
Steel Body PDC Drill Bit 10 Gauge 61 Cutter Carbide Rock Drill Bits
XHR Series Features
- Suitable for improving ROP in soft formation
- Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing
- Optimize nozzles and junk slot design by using CFD to speed up cutting moving
- The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP
Product Features
- 1piece Bit
- 0.8mm Relieved Gauge
- 1.6mm Stepped Gauge
- Up-Drill Cutters on Gauge Pads
- 4D shaped cutter
- Drop In Cutters on Gauge Pads
Note:
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
