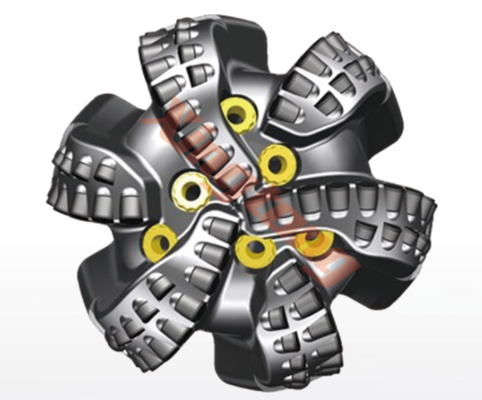

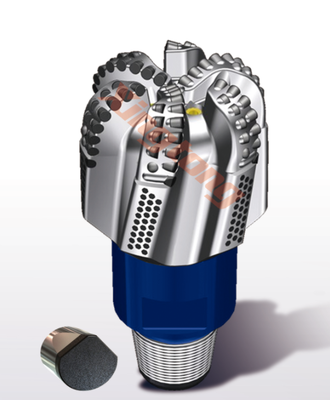

Rigid Body PDC Drill Bits – 8 3/4″222mm XH 6164ML Model for Super Hard Formation Oil Drilling
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 3/4″222mm XH 6164ML |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Type | GI | IADC Code | S434 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 76 |
| Face | 62 | Gauge | 14 |
| Nozzle Type & Count | L*6 | Junk Slot Area (sq Mm) | 10548 |
| Normalized Face Volume | Normalized Face Volume | API Connection | 4-1/2 REG.pin |
| Make-Up TQ | 16-24KN.m | Gauge Length | 102mm |
| Make-Up Length | 516mm | Approximate Shipping Weight | 96kg |
| Highlight | 222mm pdc rock bit,222mm pdc drill bit,rigid body pdc rock bit |
||
Product Description
XH Series Features
- Suitable for increasing durability and footage.
- The optimized profile makes the load distribution more even to reduce the risk of ring out.
- High quality PDC were put on shoulder to improve wear and impact resistance
- Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
- 1.6mm Stepped Gauge
- Dual row cutting structrue
- Drop In Cutters on Gauge Pads
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
