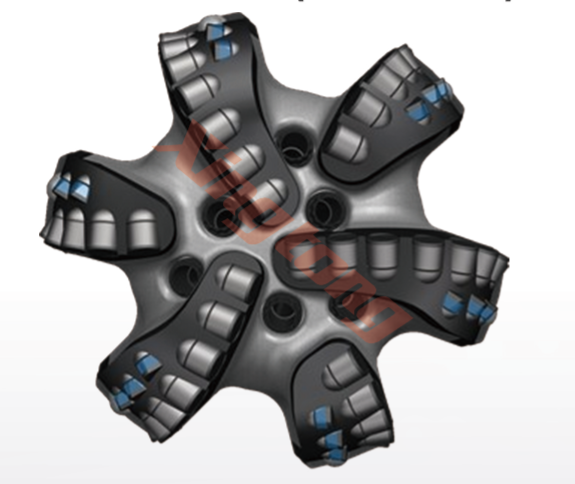

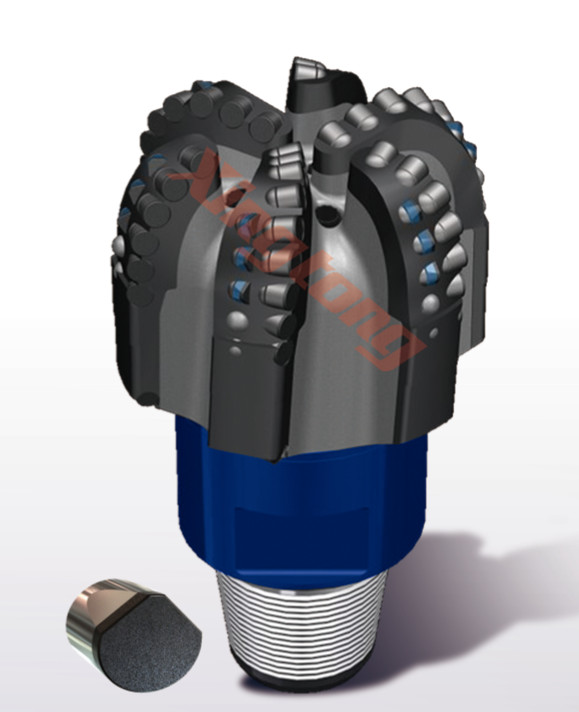

ISO9001 Drilling Oil Rig Bit 66 Cutter S425 Polycrystalline Diamond Compact

  • ISO9001 Drilling Oil Rig Bit 66 Cutter S425 Polycrystalline Diamond Compact
  • ISO9001 Drilling Oil Rig Bit 66 Cutter S425 Polycrystalline Diamond Compact
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 8 3/4″ 222mm XHR 6164BM
Minimum Order Quantity 1 Piece (MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability Stable supply and support for bulk customization

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutter Type Cutter Type IADC Code S425
Body Type STEEL Total Cutter Count 66
Face 48 Gauge 12
Updrill 6 Nozzle Type & Count L*6
Junk Slot Area (sq Mm) 11748 Normalized Face Volume 50.33%
API Connection 4-1/2 REG.pin Make-Up TQ 16-24KN.m
Gauge Length 76mm Make-Up Length 455mm
Approximate Shipping Weight 81kg
Highlight

ISO9001 oil rig bit

,

oil rig bit 66 Cutter

,

S425 polycrystalline diamond compact
Leave a Message
Product Description

PDC Drill Bits 8 3/4″ 222mm XHR 6164BM for High-Speed Drilling in Soft Formations

XHR Series Features

  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.

Product Features

  • 1.6mm Stepped Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue

Note

  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
