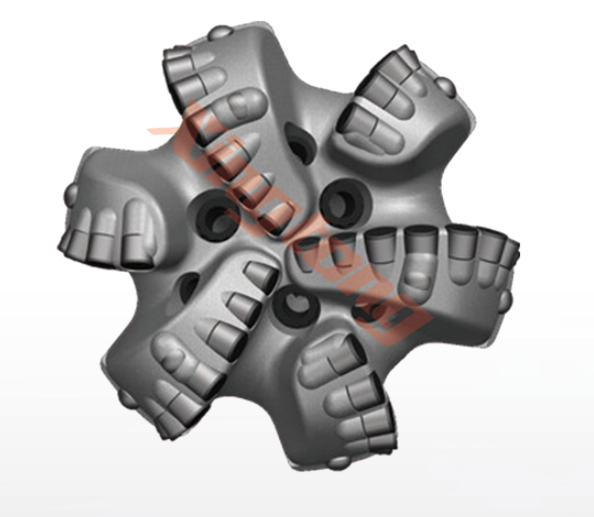

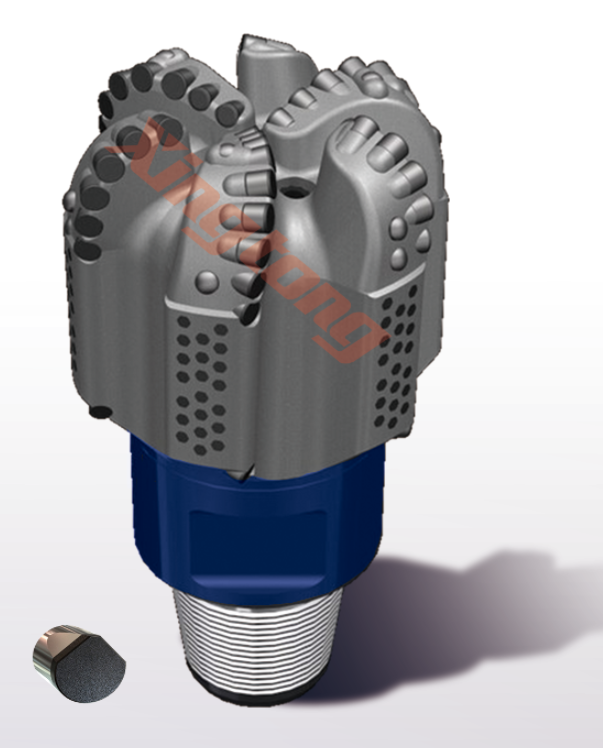

102mm Oilfield Bits Polycrystalline Diamond Drill Bits

  • 102mm Oilfield Bits Polycrystalline Diamond Drill Bits
  • 102mm Oilfield Bits Polycrystalline Diamond Drill Bits
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 8 1/2″ 216mm XH 6164
Minimum Order Quantity 1 Piece (MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability Stable supply and support for bulk customization

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutter Type GI IADC Code S324
Body Type STEEL Total Cutter Count 47
Face 31 Gauge 10
Updrill 6 Nozzle Type & Count L*3
Junk Slot Area (sq Mm) 8477 Normalized Face Volume 54.12%
API Connection 4-1/2 REG.pin Make-Up TQ 16-24KN.m
Gauge Length 102mm Make-Up Length 475mm
Approximate Shipping Weight 87kg
Highlight

102mm Gauge oilfield bits

,

oilfield bits 47 Cutter

,

polycrystalline diamond drill bits
Leave a Message
Product Description
PDC Drill Bits 8 1/2″ 216mm XH 6164 for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage.
  • The optimized profile makes the load distribution more even to reduce the risk of ring out.
  • High quality PDC were put on shoulder to improve wear and impact resistance.
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue
  • 4D shaped cutter
  • Radius Hex TSP on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
