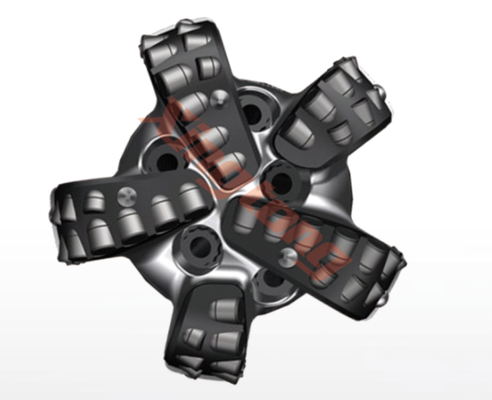

PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations

  • PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
  • PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 8 1/2″ 216mm XHR 5164DB
Minimum Order Quantity 1 Piece (MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability Stable supply and support for bulk customization

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutter Type GI IADC Code S324
Body Type STEEL Total Cutter Count 61
Face 41 Gauge 15
Updrill 5 Nozzle Type & Count L*5
Junk Slot Area (sq Mm) 12535.46 Normalized Face Volume 55.17%
API Connection 4-1/2 REG.pin Make-Up TQ 16-24KN.m
Gauge Length 64mm Make-Up Length 507mm
Approximate Shipping Weight 78kg
Highlight

216mm pdc rock bit

,

216mm pdc drill bit

,

soft formations pdc rock bit
Leave a Message
Product Description
XHR Series Features
  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue
  • 4D shaped cutter
  • Radius Hex TSP on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
