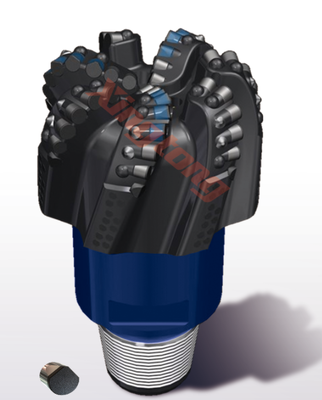

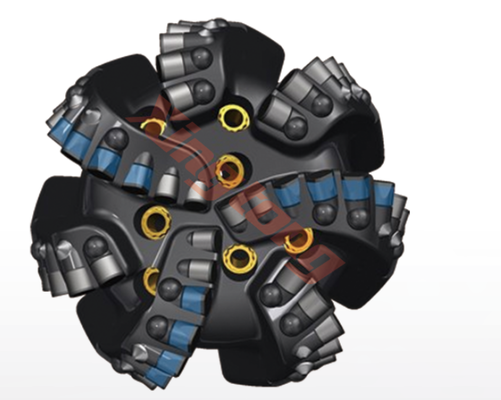

API PDC Drill Bit 16KN.m - 24KN.m rock core bit 76mm Gauge
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2″ 216mm XH 7164SBA |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 49 |
| Face | 36 | Gauge | 13 |
| Nozzle Type & Count | L*7 | Junk Slot Area (sq Mm) | 9238 |
| Normalized Face Volume | 48.41% | API Connection | 4-1/2 REG.pin |
| Make-Up TQ | 16-24KN.m | Gauge Length | 76mm |
| Make-Up Length | 447mm | Approximate Shipping Weight | 78kg |
| Highlight | API PDC Drill Bit,PDC Drill Bit 16KN.m,rock core bit 24KN.m |
||
Product Description
XH Series Features
- Suitable for increasing durability and footage.
- The optimized profile makes the load distribution more even to reduce the risk of ring out.
- High quality PDC were put on shoulder to improve wear and impact resistance.
- Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structrue
- 4D shaped cutter
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
