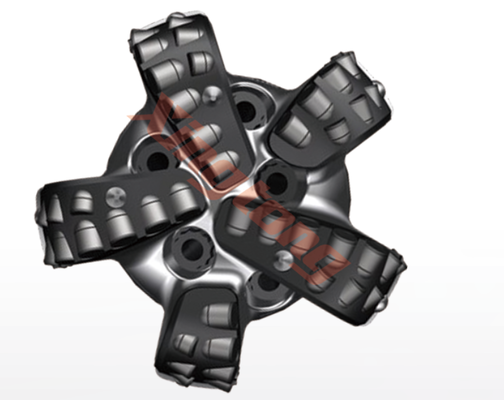

53 Cutter PDC Drill Bit Rigid Body Hdd Pdc Bit For Drilling Soft Formations
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2″ 216mm XHR 5164B |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 53 |
| Face | 36 | Gauge | 12 |
| Updrill | 5 | Nozzle Type & Count | L*5 |
| Junk Slot Area (sq Mm) | 11290 | Normalized Face Volume | 50.42% |
| API Connection | 4-1/2 REG.pin | Make-Up TQ | 16-24KN.m |
| Gauge Length | 89mm | Make-Up Length | 450mm |
| Approximate Shipping Weight | 61kg | ||
| Highlight | 53 Cutter PDC Drill Bit,PDC Drill Bit Rigid Body,OEM hdd pdc bit 53 Cutter |
||
Product Description
8 1/2″ 216mm XHR 5164B PDC Drill Bits with Rigid Body: Ideal for High-Speed Drilling in Soft Formations
XHR Series Features
- Suitable for improving ROP in soft formation.
- Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
- Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
- The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
- 0.8mm Relieved Gauge
- Drop In Cutters on Gauge Pads
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structrue
- 4D shaped cutter
Note
- The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
- The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
- The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
