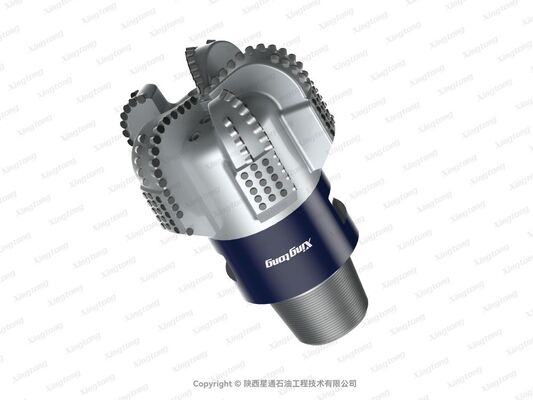

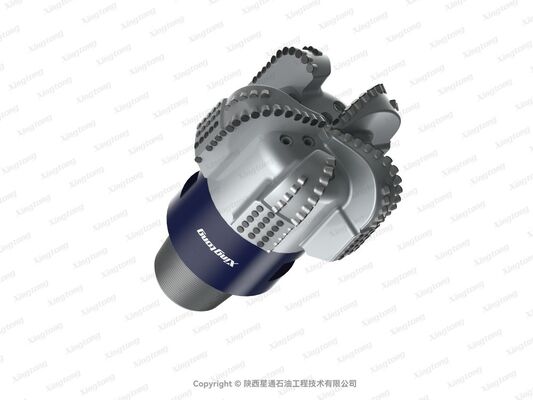

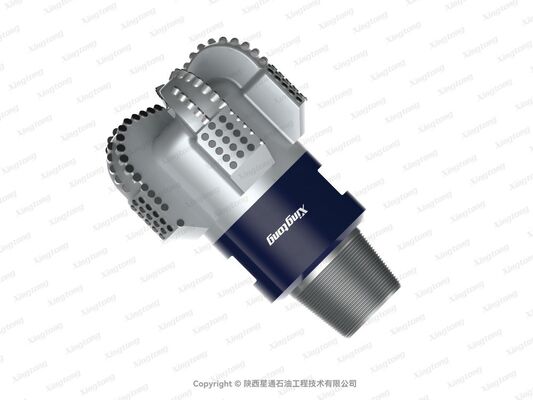

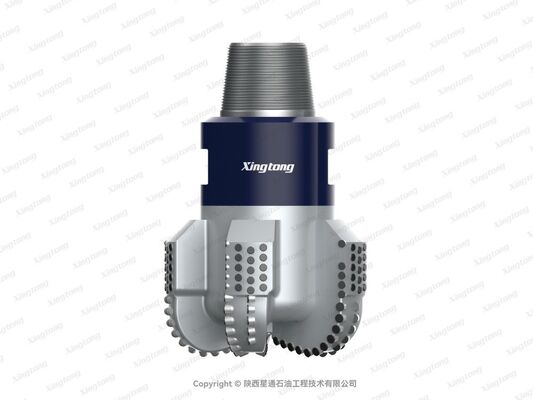

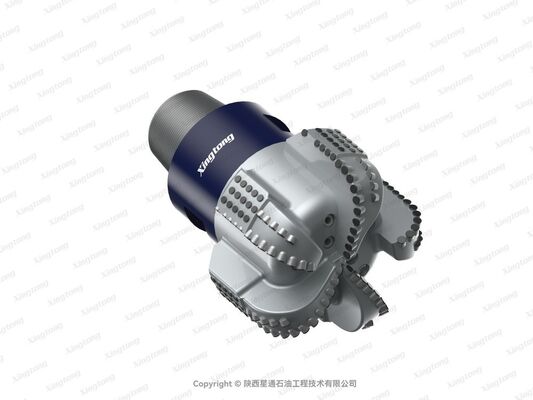

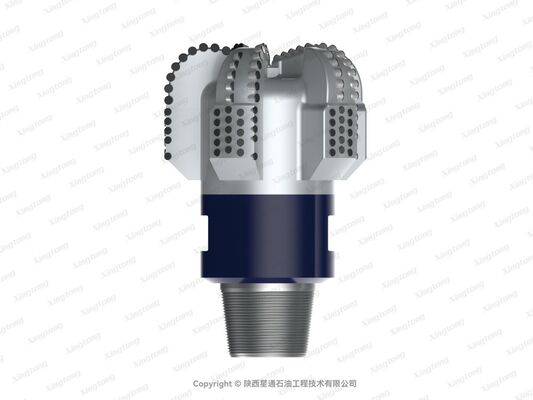

14 3/4 XHR S 5163 (26002) PDC Drill Bit High-RPM Design for Soft Formations
14 3/4 XHR S 5163 (26002) PDC Drill Bit High-RPM Design for Soft Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
14 3/4 XHR S 5163 (26002)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 14 3/4 XHR S 5163 (26002) Product Positioning The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this bit utilizes advanced tooth geometry and hydraulic optimization to deliver ...
Product Custom Attributes
Highlight
PDC drill bit 14 3/4 XHR S 5163
,Xingtong PDC drill bit with warranty
,14 3/4 XHR S 5163 drill bit
Cutter Grade:
GI
IADC Code:
S222
Body Type:
STEEL
Face:
74
Gauge:
95
Updrill:
5
Nozzle Type& Count:
M*8
Chip Removal Groove Area Ratio:
60.1%
API Connection:
7-5/8REG
Make-Up TQ:
65.5-86.1KN.m
Gauge Length:
98mm
Make-Up Length:
430mm
Approximate Shipping Weight:
174kg
Recommended Weight On Bit:
16-20T
Total Flow Area:
776mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 14 3/4 XHR S 5163 (26002)
Product Positioning
The XHR series is a high-RPM drill bit engineered for high-speed drilling operations in soft formations. Designed to maximize rate of penetration (ROP), this bit utilizes advanced tooth geometry and hydraulic optimization to deliver superior rock breakage efficiency and rapid cuttings removal, significantly accelerating drilling speed.
Technical Highlights
- Optimized for high-speed drilling in soft formations
- Hybrid matrix with irregular cutting teeth geometry enhances rock-breaking efficiency and cuttings transport velocity
- CFD-optimized nozzles and flow passages provide superior cuttings-carrying efficiency during high-speed operations
- High-strength steel body enables thinner cutter blade design, preventing interference during high mechanical drilling rates
Applicable Operating Conditions
Ideal for drilling intervals in soft to medium-hard formations where accelerated penetration is required. Specifically designed to achieve the highest possible mechanical drilling rate in targeted applications.
