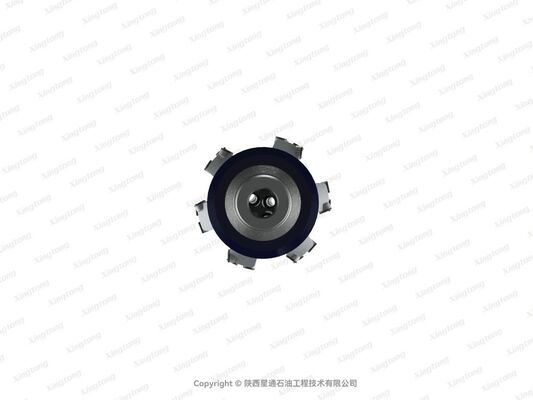

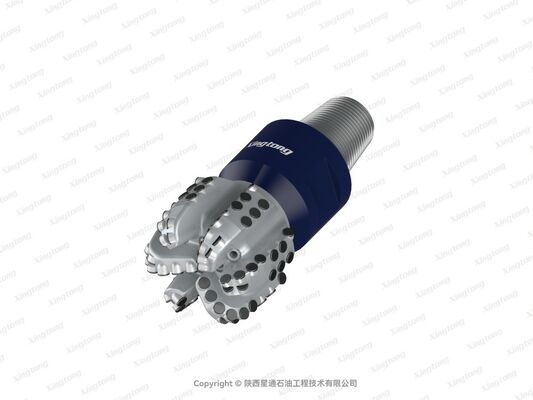

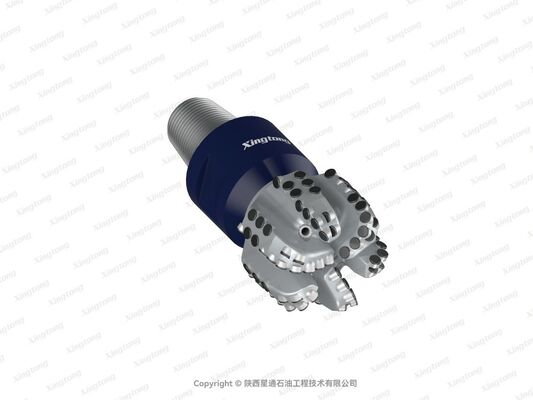

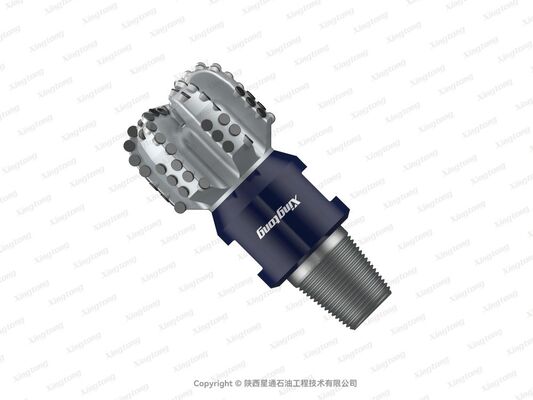

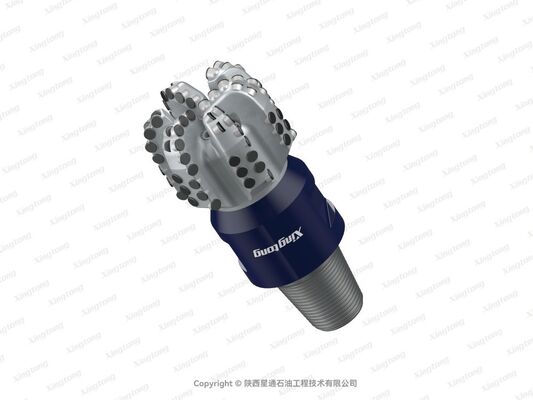

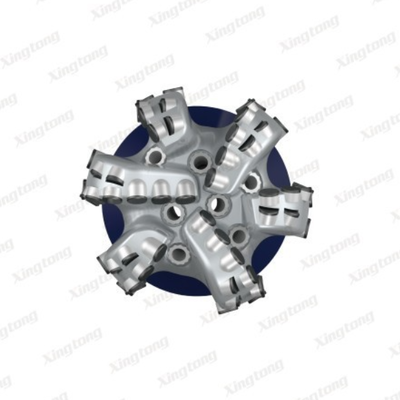

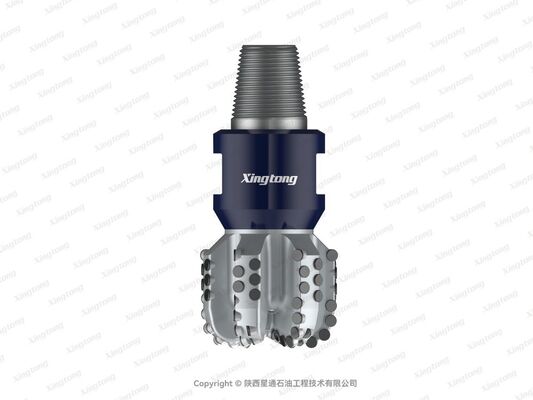

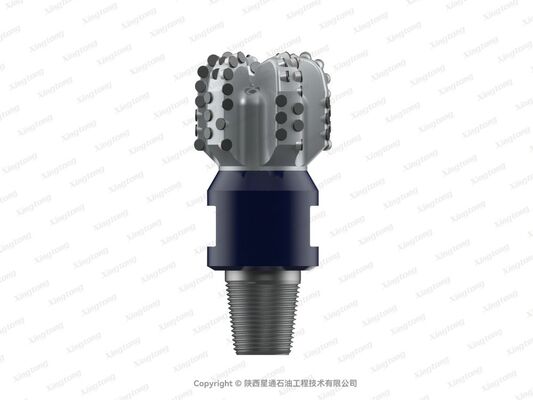

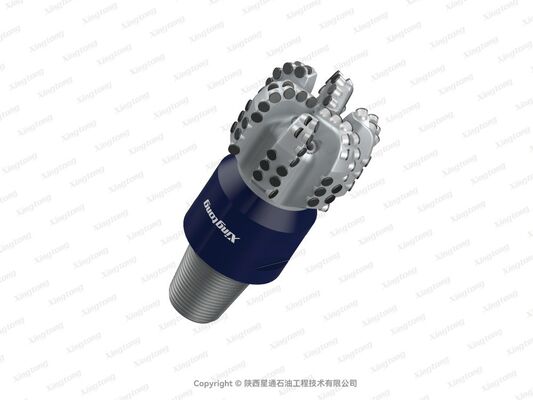

6 XH S 6139 A(24022) PDC Drill Bit with GI Cutter Grade and IADC Code S432 for Hard Formations
6 XH S 6139 A(24022) PDC Drill Bit with GI Cutter Grade and IADC Code S432 for Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
6 XH S 6139 A(24022)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 6 XH S 6139 A(24022) Product Positioning The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Developed with the core objectives of extending bit life and maintaining stable penetration rates, ...
Product Custom Attributes
Highlight
PDC drill bit with warranty
,Xingtong PDC drill bit
,6 XH S 6139 drill bit
Cutter Grade:
GI
IADC Code:
S432
Body Type:
STEEL
Face:
44
Gauge:
30
Updrill:
6
Nozzle Type & Count:
M*7
Chip Removal Groove Area Ratio:
58.5%
API Connection:
3-1/2REG
Make-Up TQ:
7.1-11.5KN.m
Gauge Length:
60mm
Make-Up Length:
244mm
Approximate Shipping Weight:
15kg
Recommended Weight On Bit（Maximum Acceptable）:
10-12T （78T）
Total Flow Area:
404mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 6 XH S 6139 A(24022)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Developed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times in extremely hard formations. This results in reduced make-up and break-out operations and improved overall drilling efficiency.
Technical Highlights
- Enhanced performance in hard formations to extend drill bit life and improve penetration rates
- Optimized crown geometry ensures uniform load distribution, reduces stress on individual teeth, and minimizes core gouging risk
- High-performance imported PDC cutters provide superior shoulder wear resistance and impact resistance for extended service life
- Unique rear-flute design maintains cutting aggressiveness while enhancing overall drill bit durability
Applicable Operating Conditions
Designed for drilling operations in extremely hard and highly abrasive formations where extended tool life and higher penetration rates are critical requirements.
