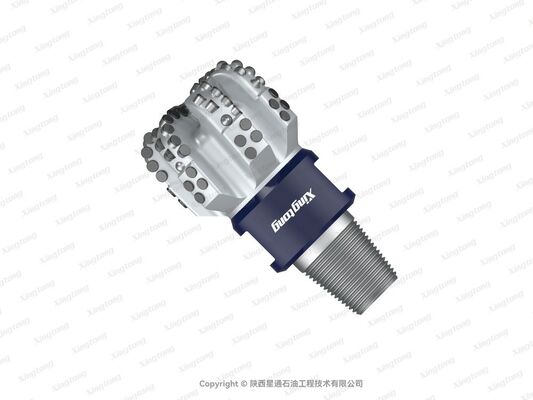

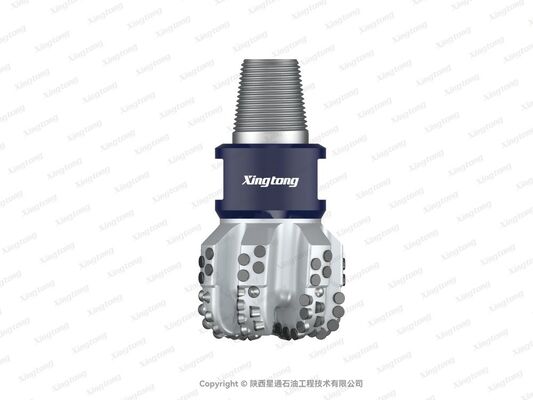

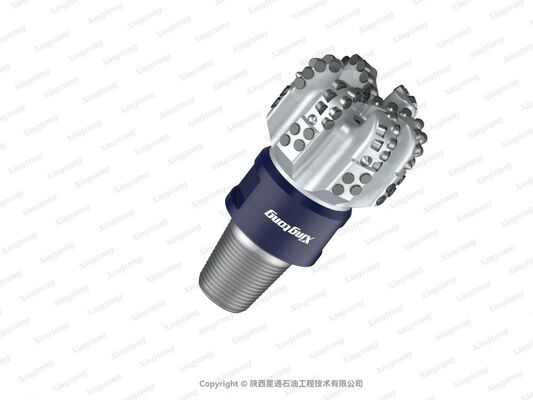

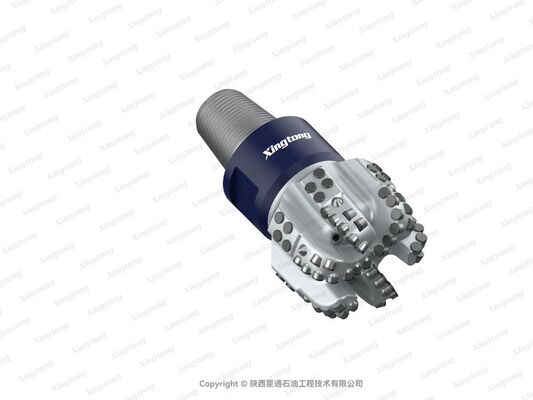

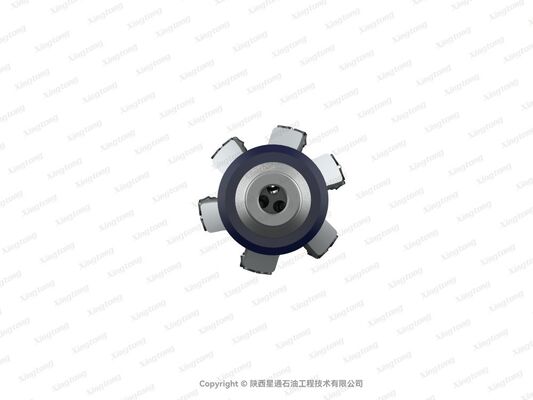

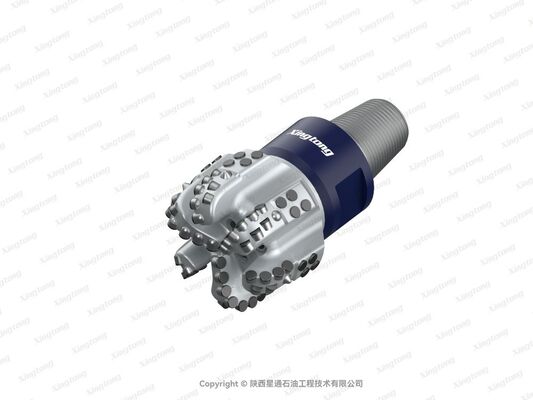

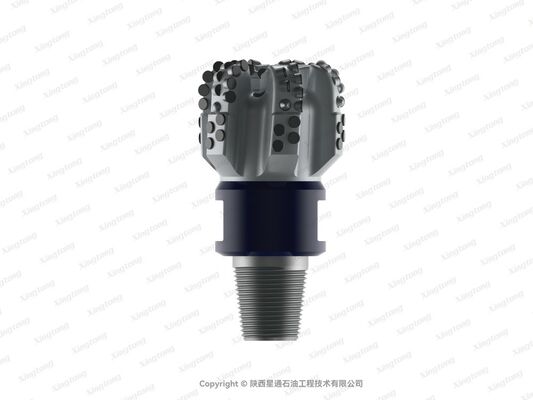

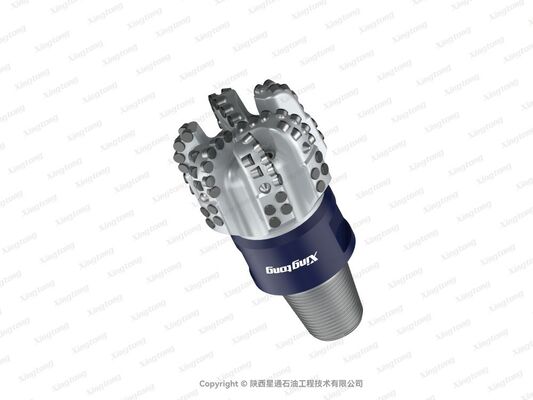

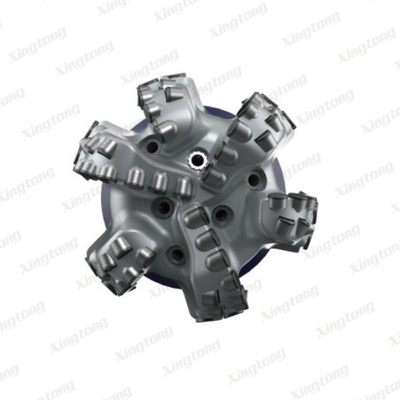

6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations

  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
  • 6 1/2 XH S 6138 BK(24029) Size PDC Drill Bit with GI Cutter Grade and S432 IADC Code for Hard Formations
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 1/2 XH S 6138 BK(24029)
Document 6 1.2 XH S 6138 BK(24029).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/P,T/T,
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S432
Body Type STEEL Face 47
Gauge 24 Nozzle Type & Count M*6
Chip Removal Groove Area Ratio 52.9% API Connection 3-1/2REG
Make-Up TQ 7.1-11.5KN.m Gauge Length 66mm
Make-Up Length 220mm Approximate Shipping Weight 21kg
Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T） Total Flow Area 485mm^2
Highlight

PDC drill bit 6 1/2 inch

,

Xingtong S 6138 drill bit

,

PDC drill bit with warranty
Leave a Message
Product Description
Xingtong Drill Bit 6 1/2 XH S 6138 BK(24029)
Product Positioning

The XH series represents Xingtong's high-durability drill bit lineup engineered specifically for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times in extremely hard formations.

This advanced design reduces the number of make-up and break-out operations while significantly improving overall drilling efficiency in challenging geological conditions.

Technical Highlights
  • Suitable for hard formations to enhance drill bit life and penetration rate
  • Optimized crown geometry ensures uniform load distribution, reduces load on individual teeth, and lowers the risk of core gouging
  • High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending overall service life
  • Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions

Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
