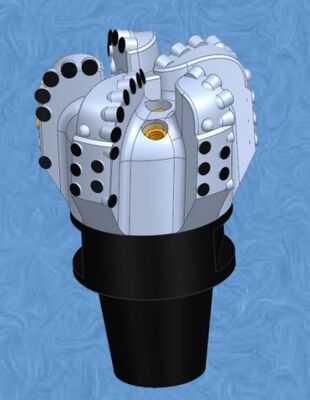

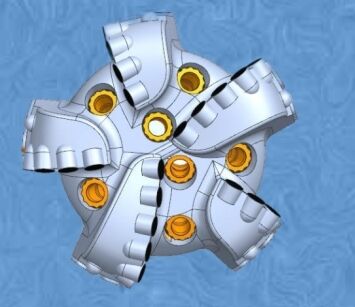

8 1/2" (216mm) Steel Body PDC Directional Drilling Bit API 7-1 Standard Compliant for Mining Wells
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 8 1/2″ 216mm XD 5163 |
| Minimum Order Quantity | 1 Piece（MOQ） |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/P,T/T, |
| Supply Ability | Stable supply and support for bulk customization. |
Product Details
| Cutter Type | GI | IADC Code | S324 |
|---|---|---|---|
| Body Type | STEEL Body | Total Cutter Coun | 56 |
| Face | 26 | Gauge | 25 |
| Updrill | 5 | Nozzle Type & Count | L*7 |
| Junk Slot Area (sq Mm) | 10812 | Normalized Face Volume | 65.4% |
| API Connection | 4-1/2 REG.pin | Make-Up TQ | 16-24KN.m |
| Gauge Length | 62mm | Make-Up Length | 227mm |
| Approximate Shipping Weight | 36kg | ||
| Highlight | 8 1/2 inch Directional Drill Bits,Directional Drill Bits 62mm,pdc diamond bit API Standard |
||
Product Description
Factory Promotion: Mining Well PDC Directional Drilling Bit 8 1/2" (216mm) XD5163
API 7-1 Standard Compliant Steel Body PDC Bit
XD Series Features
- Suitable for improving the steerability and overall drilling efficiency for both RSS and bent motor
- Shank-less design reduces make-up length by 40% compared to conventional bits, significantly improving steerability
- Unique depth of cut control design provides excellent tool face control, even under higher than normal WOB conditions
- Drilling with bent motor: maximum DLS ≥30°/30m
- Drilling with RSS: maximum DLS ≥15°/30m
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- All-in-one design
Important Notes
The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
