11 5/8inch 295mm PDC Rock Bit Pdc Drill For Soft Formation

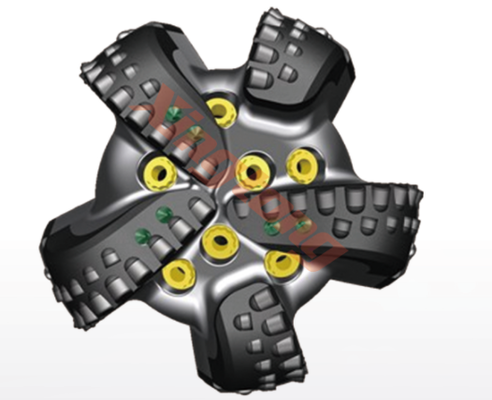

  • 11 5/8inch 295mm PDC Rock Bit Pdc Drill For Soft Formation

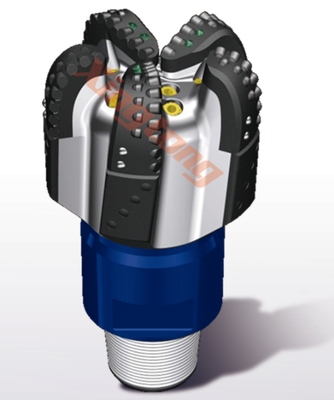

  • 11 5/8inch 295mm PDC Rock Bit Pdc Drill For Soft Formation
Place of Origin CHINA
Brand Name XINGTONG
Certification API 、ISO 9001
Model Number 11 5/8″ 295mm XHR 5164
Minimum Order Quantity 1 Piece (MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms ,L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability Stable supply and support for bulk customization

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cutter Type GI IADC Code S324
Body Type STEEL Total Cutter Count 69
Face 23+36 Gauge 10
Nozzle Type & Count L*7 Junk Slot Area (sq Mm) 20354
Normalized Face Volume 47.54% API Connection 6-5/8REG.pin
Make-Up TQ 50-59KN.m Gauge Length 102mm
Make-Up Length 613mm Approximate Shipping Weight 169kg
Highlight

11 5/8inch PDC Rock Bit

,

295mm pdc core bit

,

Soft Formation pdc drill
Leave a Message
Product Description
PDC Drill Bits 11 5/8″ 295mm XHR 5164 for High-Speed Drilling in Soft Formation
XHR Series Features
  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
  • 0.8mm Relieved Gauge
  • 1.6mm Stepped Gauge
  • Dual row cutting structrue
  • Efficient Backup Cutter Layout
  • Drop In Cutters on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
