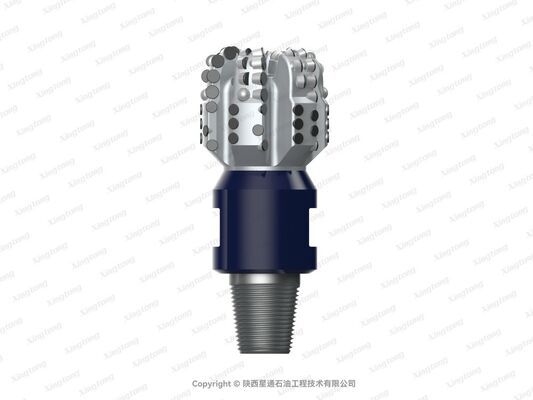

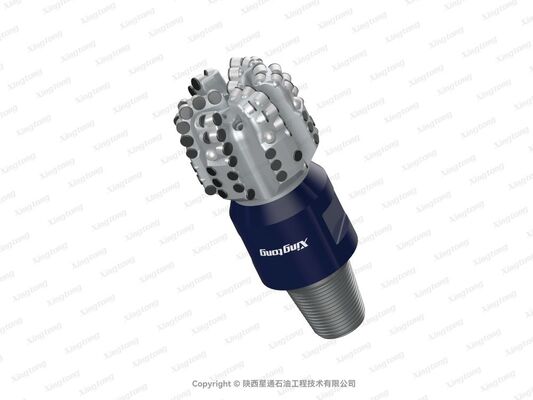

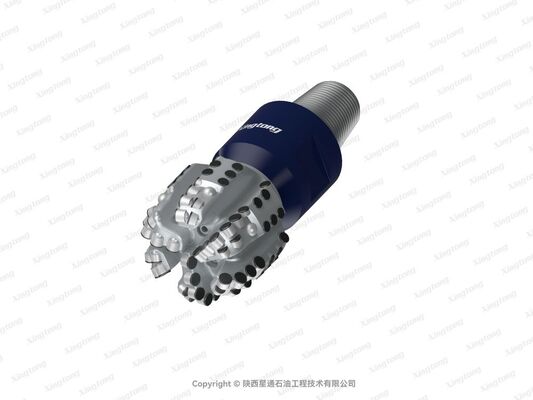

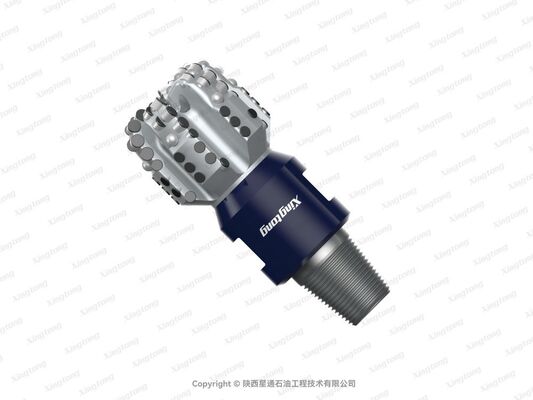

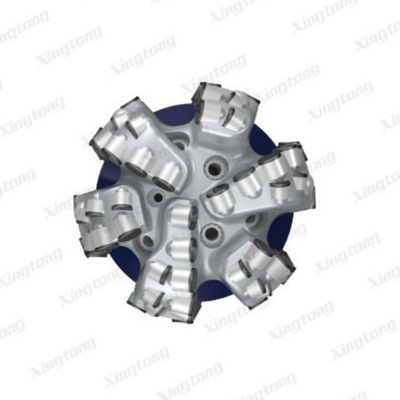

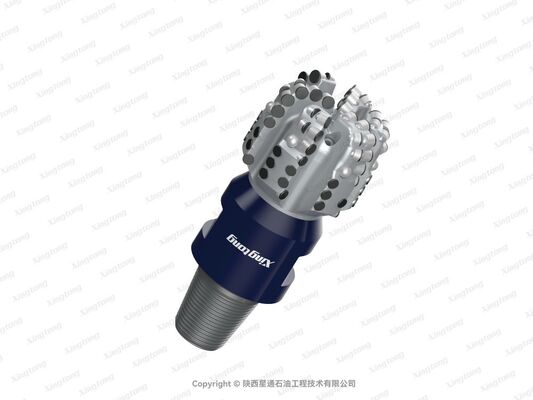

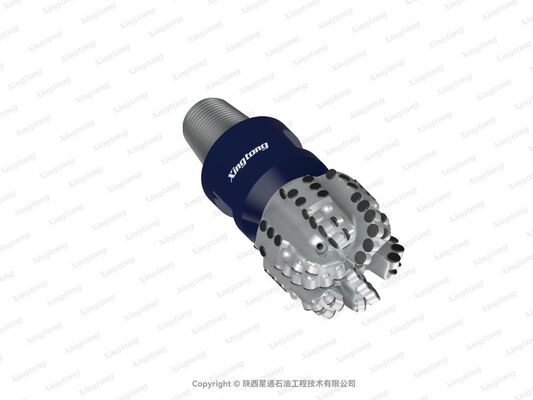

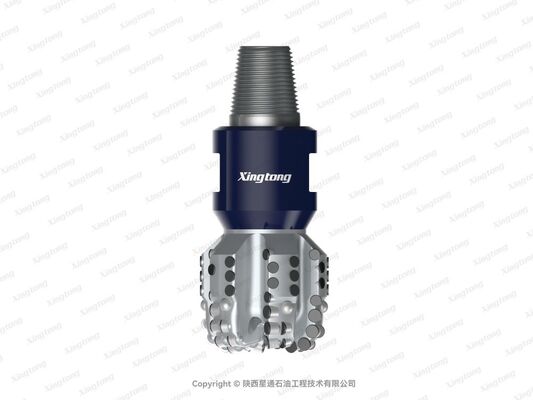

6 XH 6169 BK(24037) PDC Drill Bit with GI Cutter Grade 6 Updrill and 47 Face for Ultra-Hard Formations
6 XH 6169 BK(24037) PDC Drill Bit with GI Cutter Grade 6 Updrill and 47 Face for Ultra-Hard Formations
Basic Properties
Place of Origin:
CHINA
Brand Name:
XINGTONG
Certification:
API、ISO 9001
Model Number:
6 XH 6169 BK(24037)
Trading Properties
Minimum Order Quantity:
1 Picece(MOQ)
Price:
Negotiable
Payment Terms:
L/C,D/P,T/T,
Supply Ability:
Stable supply and support for bulk customization
Product Summary
Xingtong Drill Bit 6 XH 6169 BK(24037) Product Positioning The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, ...
Product Custom Attributes
Highlight
PDC drill bit with tungsten carbide
,Xingtong XH 6169 drill bit
,6-inch PDC drill bit
Cutter Grade:
GI
IADC Code:
S422
Body Type:
STEEL
Face:
47
Gauge:
27
Updrill:
6
Nozzle Type & Count:
M*5、D*1
Chip Removal Groove Area Ratio:
41.8%
API Connection:
3-1/2REG
Make-Up TQ:
7.1-11.5KN.m
Gauge Length:
52mm
Make-Up Length:
269mm
Approximate Shipping Weight:
24kg
Recommended Weight On Bit（Maximum Acceptable）:
10-12T （78T）
Total Flow Area:
334mm^2
Product Description
Detailed Specifications & Features
Xingtong Drill Bit 6 XH 6169 BK(24037)
Product Positioning
The XH series represents Xingtong's high-durability drill bit lineup specifically engineered for ultra-hard and highly abrasive formations. Designed with the core objectives of extending bit life and maintaining stable penetration rates, this series incorporates enhanced wear-resistant materials and optimized structural design to achieve longer single-bit run times, reduce make-up and break-out operations, and improve overall drilling efficiency in extremely challenging formations.
Technical Highlights
- Suitable for hard formations to enhance drill bit life and penetration rate
- Optimized crown geometry ensures more uniform load distribution, reduces load on individual teeth in the tooth root, and lowers the risk of core gouging
- High-performance imported PDC cutters enhance shoulder wear resistance and impact resistance, extending the overall service life of the drill bit
- Unique rear-flute design enhances drill-bit durability while maintaining cutting aggressiveness
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
