S434 49 Cutter PDC Drill Bits Pdc Drag Bit Super Hard Formations
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG DRILL BIT |
| Certification | API 、ISO 9001 |
| Model Number | 6 ″ 152.4mm XH 6164DM |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GI | IADC Code | S434 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 49 |
| Face | 24+12 | Gauge | 7 |
| Updril | 6 | Nozzle Type & Count | M*3+P*3 |
| Junk Slot Area (sq Mm) | 3400 | Normalized Face Volume | 46.55% |
| API Connection | 3-1/2 REG.pin | Make-Up TQ | 7-10KN.m |
| Gauge Length | 51mm | Make-Up Length | 349mm |
| Approximate Shipping Weight | 45kg | ||
| Highlight | S434 pdc rock drill bit,49 Cutter pdc rock drill bit,Hard Formations pdc drag bit |
||
Product Description

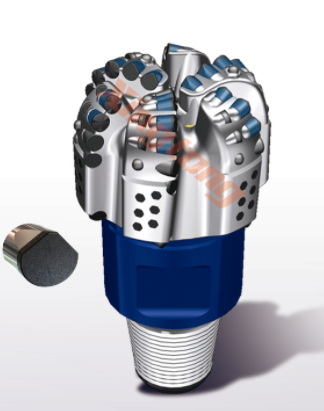

High Performance PDC Drill Bits (6″ 152.4mm XH 6164DMA) for Oil Drilling Super Hard Formations
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GI |
| IADC code | S434 |
| Body type | STEEL |
| Total Cutter Count | 49 |
| Face | 24+12 |
| Gauge | 7 |
| Updril | 6 |
| Nozzle type & count | M*3+P*3 |
| Junk slot area (sq mm) | 3400 |
| Normalized Face Volume | 46.55% |
| API Connection | 3-1/2 REG.pin |
| Make-Up TQ | 7-10KN.m |
| Gauge Length | 51mm |
| Make-Up Length | 349mm |
| Approximate Shipping Weight | 45kg |
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile for even load distribution to reduce ring out risk
- High quality PDC on shoulder for improved wear and impact resistance
- Special backup cutter layout enhances bit durability while maintaining aggression
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
- Drop In Cutters on Gauge Pads
- Radius Hex TSP on Gauge Pads
Note: The recommended top-buckle torque follows API7G standards based on joint dimensions. Xingtong guarantees all technical performance as agreed with customers. Images are for reference only; contact Skycom engineers for detailed technical parameters.
