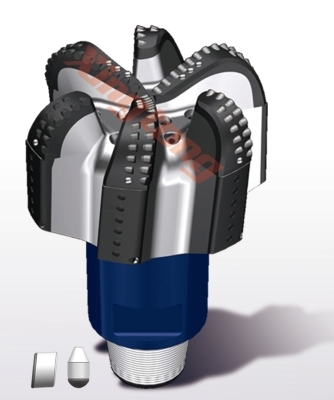

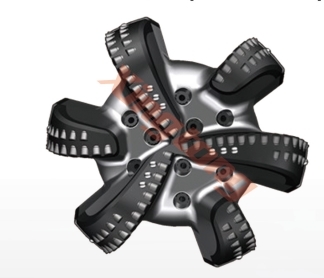

17 - 1/2inch Pdc Rock Bit 444mm 103 Cutters Polycrystalline Diamond Bit
| Place of Origin | China |
|---|---|
| Brand Name | XINGTONG |
| Certification | API 、ISO 9001 |
| Model Number | 17-1/2″ (444mm) XH 6163ML |
| Minimum Order Quantity | 1 Piece (MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | Stable supply and support for bulk customization. |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cutter Type | GII | IADC Code | S223 |
|---|---|---|---|
| Body Type | STEEL | Total Cutter Count | 103 |
| Face | 31+60 | Gauge | 6 |
| Updrill | 6 | Nozzle Type & Count | L*9 |
| Junk Slot Area (sq Mm) | 53716 | Normalized Face Volume | 28.51% |
| API Connection | 7-5/8 REG.pin | Make-Up TQ | 65-93KN.m |
| Gauge Length | 152mm | Make-Up Length | 721mm |
| Approximate Shipping Weight | 554kg | ||
| Highlight | 17 - 1/2inch pdc rock bit,pdc rock bit 444mm,103 Cutters polycrystalline diamond bit |
||
Product Description
PDC Drill Bit 17-1/2″(444mm) XH 6163ML For Extremely Hard Strata
Product Specifications
| Attribute | Value |
|---|---|
| Cutter Type | GII |
| IADC code | S223 |
| Body type | STEEL |
| Total Cutter Count | 103 |
| Face | 31+60 |
| Gauge | 6 |
| Updrill | 6 |
| Nozzle type & count | L*9 |
| Junk slot area (sq mm) | 53716 |
| Normalized Face Volume | 28.51% |
| API Connection | 7-5/8 REG.pin |
| Make-Up TQ | 65-93KN.m |
| Gauge Length | 152mm |
| Make-Up Length | 721mm |
| Approximate Shipping Weight | 554kg |
XH Series Features
- Suitable for increasing durability and footage
- Optimized profile makes load distribution more even to reduce the risk of ring out
- High quality PDC on shoulder improves wear and impact resistance
- Special backup cutter layout enhances durability while maintaining bit aggression
Product Features
- 0.8mm Relieved Gauge
- Up-Drill Cutters on Gauge Pads
- Dual row cutting structure
- 4D shaped cutter
Important Notes
- Recommended top-buckle torque is set according to joint dimensions with reference to API7G
- Technical performance fully complies with terms agreed between Xingtong and customer
- Pictures are for reference only - contact Skycom engineers for detailed technical parameters
