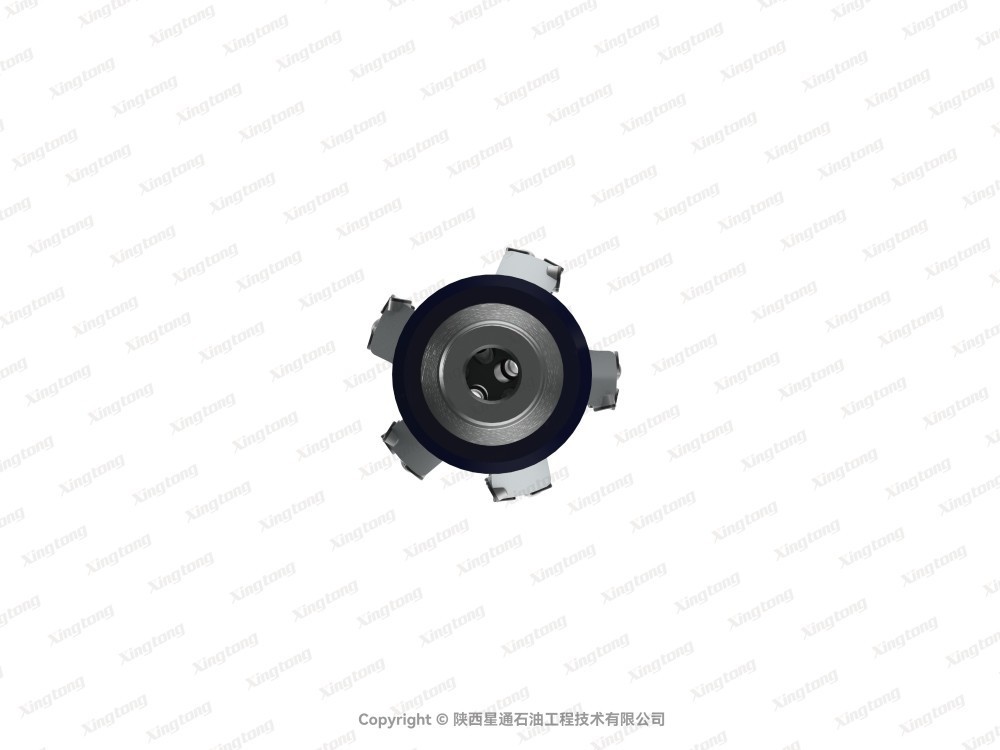

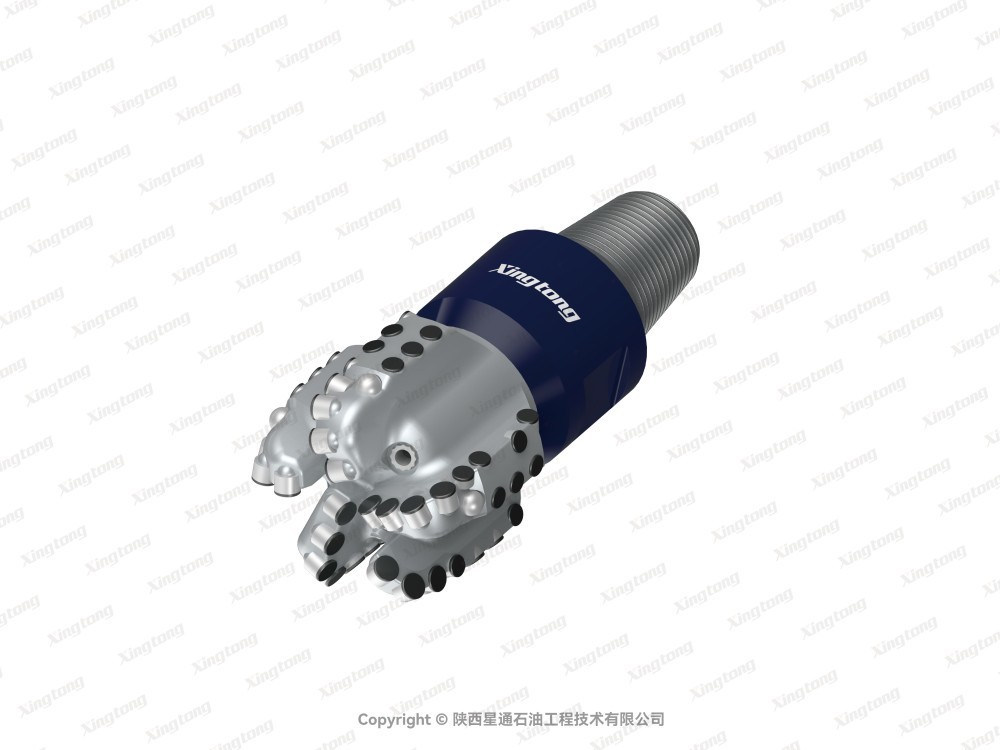

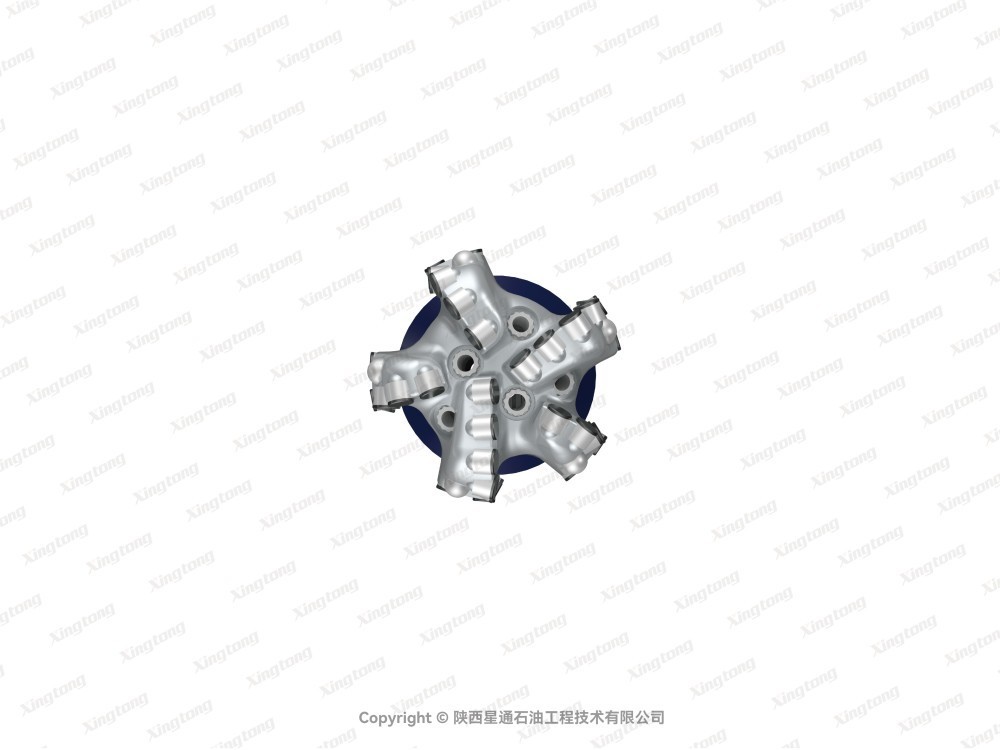

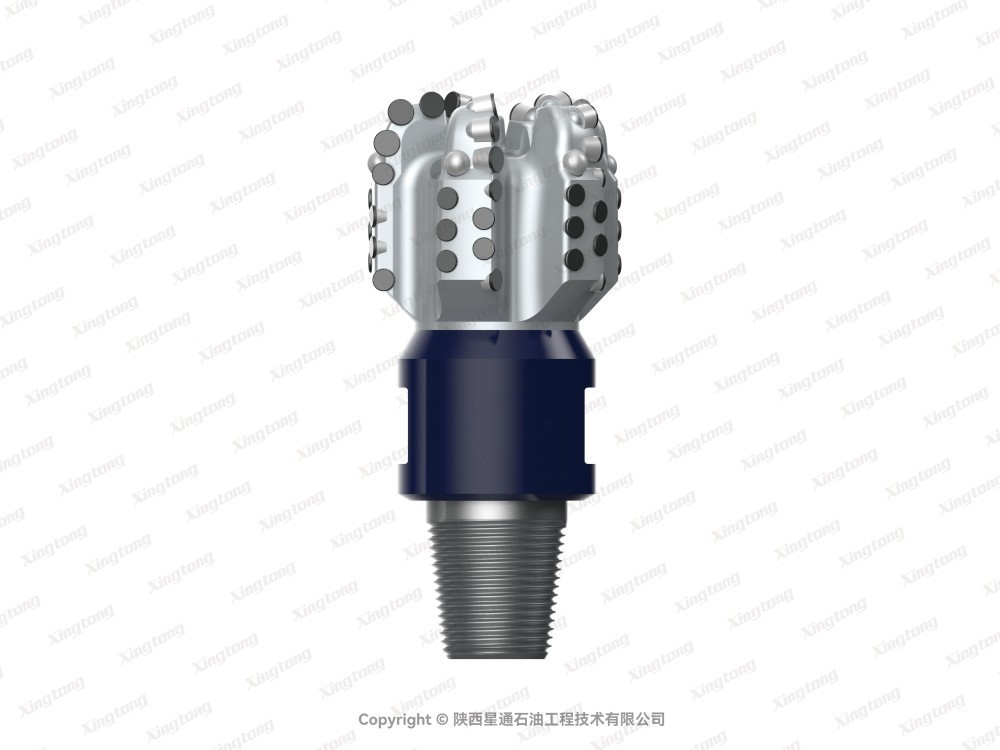

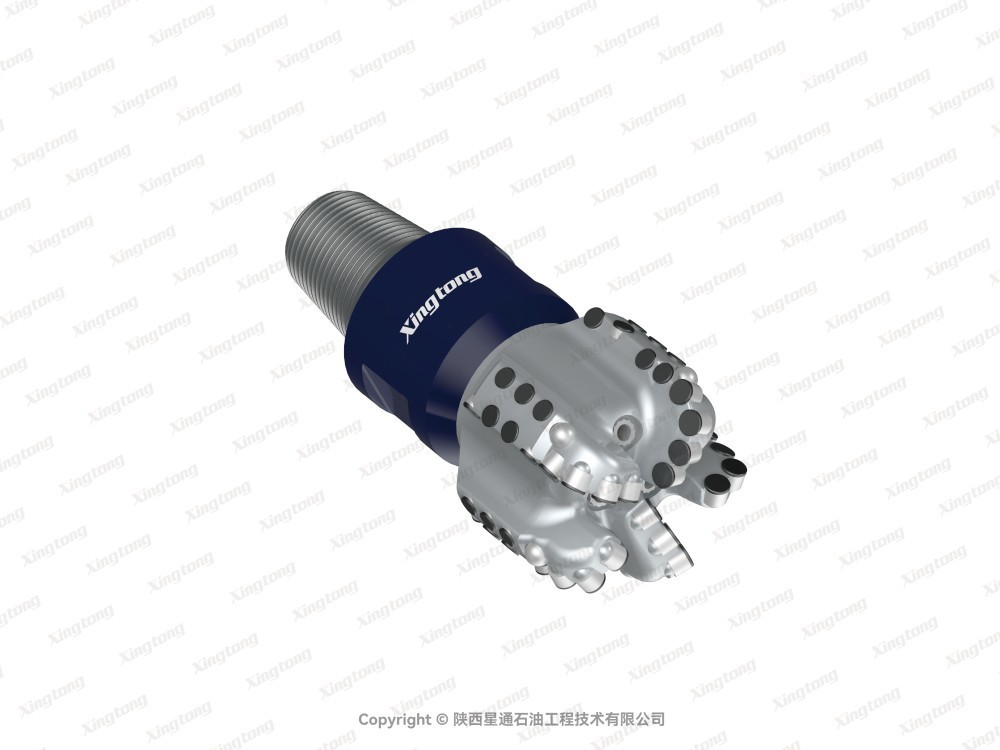

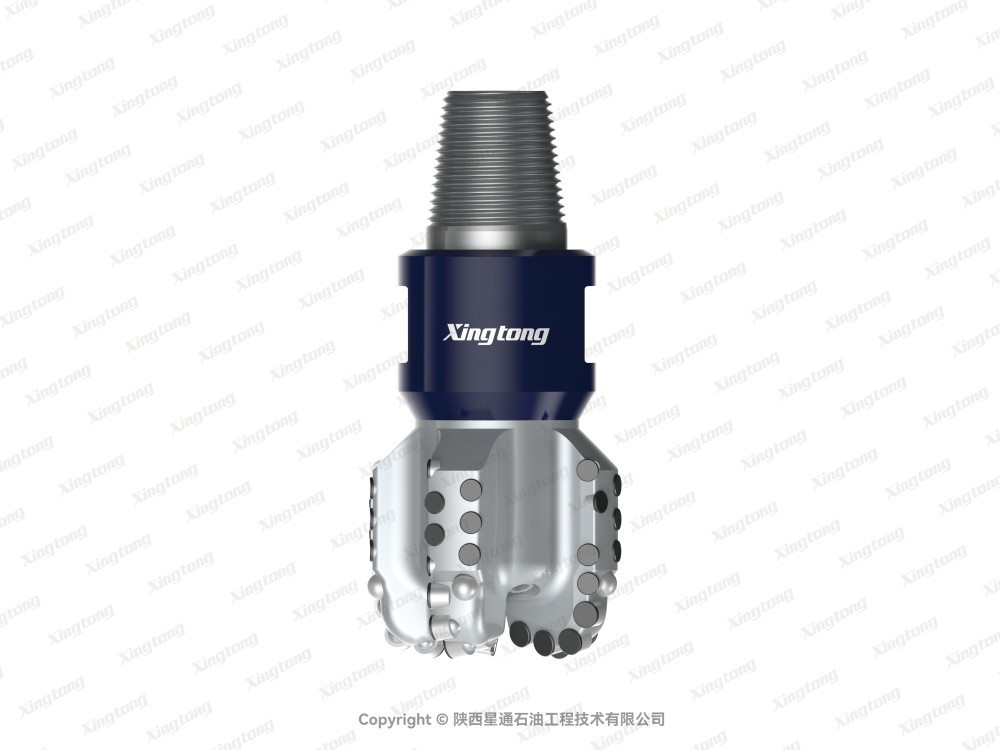

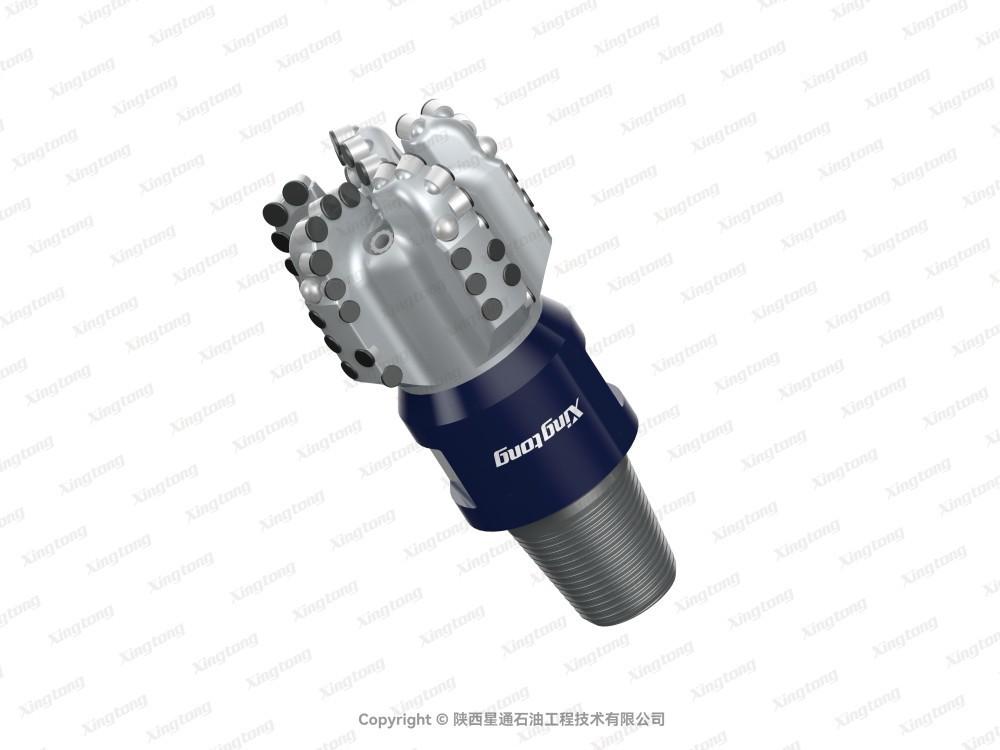

Xingtong Drill Bit 6 XH S 5167 AK(24036)
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API、ISO 9001 |
| Model Number | 6 XH S 5167 AK(24036) |
| Document | 6 XH S 5167 AK(24037).pdf |
| Minimum Order Quantity | 1 Picece(MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Grade | GI | IADC Code | S423 |
|---|---|---|---|
| Body Type | STEEL | Face | 25 |
| Gauge | 24 | Updrill | 5 |
| Nozzle Type & Count | M*5 | Chip Removal Groove Area Ratio | 56.7% |
| API Connection | 3-1/2REG | Make-Up TQ | 7.1-11.5KN.m |
| Gauge Length | 60mm | Make-Up Length | 245mm |
| Approximate Shipping Weight | 20kg | Recommended Weight On Bit（Maximum Acceptable） | 10-12T （78T） |
| Total Flow Area | 289mm^2 | ||
| Highlight | PDC drill bit 6 XH S 5167,Xingtong PDC drill bit AK(24036),PDC drill bit with warranty |
||
Product Description
Positioning
The XH series is a high-durability drill bit line developed by Xingtong specifically for ultra-hard and highly abrasive formations, with the core objectives of extending bit life and maintaining stable penetration rates. In extremely hard formations, the XH series incorporates enhanced wear-resistant materials and an optimized structural design to deliver longer single-bit run times, reduce the number of make-up and break-out operations, and improve overall drilling efficiency.
Technical Highlights
1. Suitable for hard formations to enhance drill bit life and penetration rate.
2. The optimized crown geometry ensures more uniform load distribution, reduces the load on individual teeth in the tooth root, and lowers the risk of core removal.
3. Select high-performance imported PDC cutters to enhance shoulder wear resistance and impact resistance, thereby extending the overall service life of the drill bit.
4. A unique rear-flute design enhances drill-bit durability while maintaining its cutting aggressiveness.
Applicable Operating Conditions
Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
