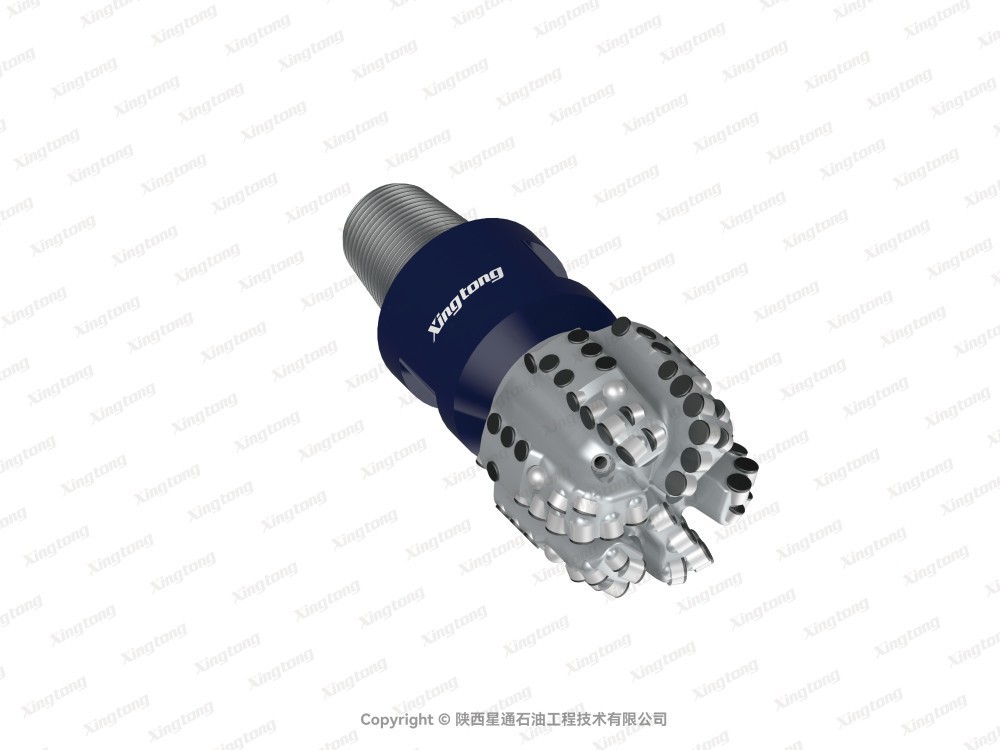

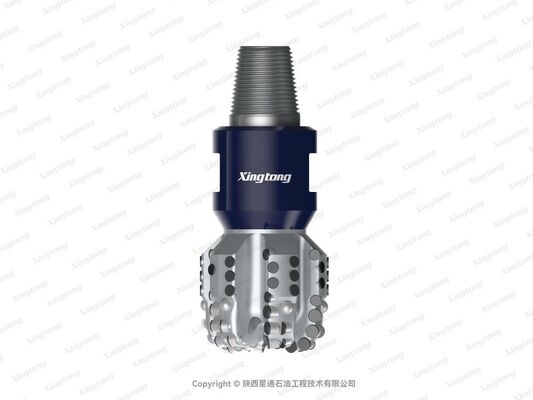

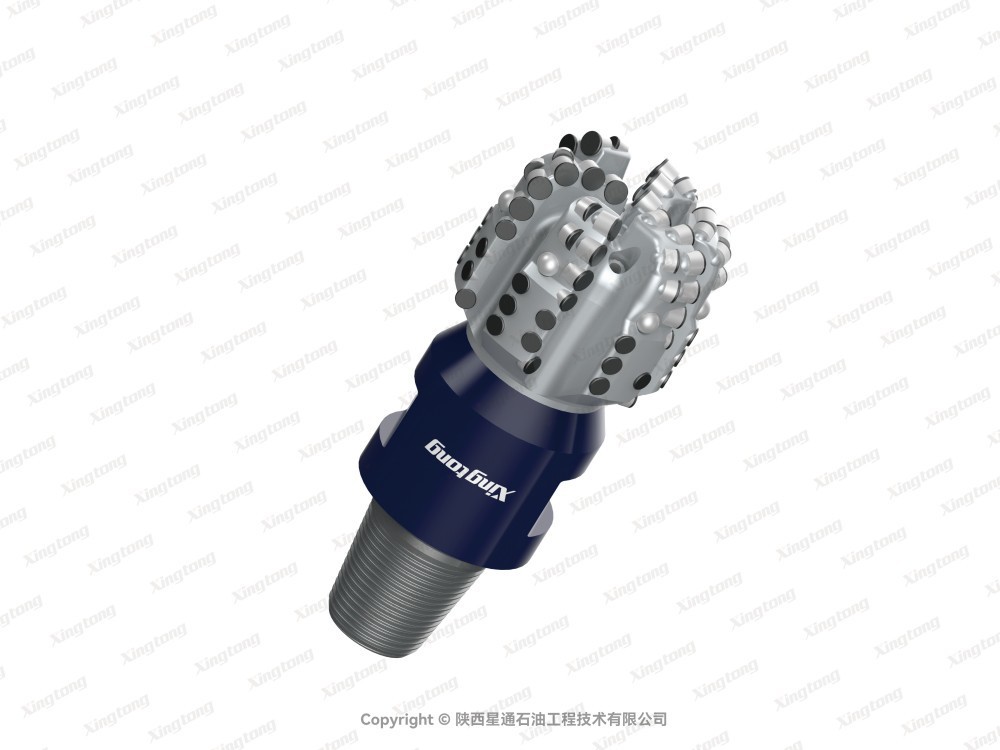

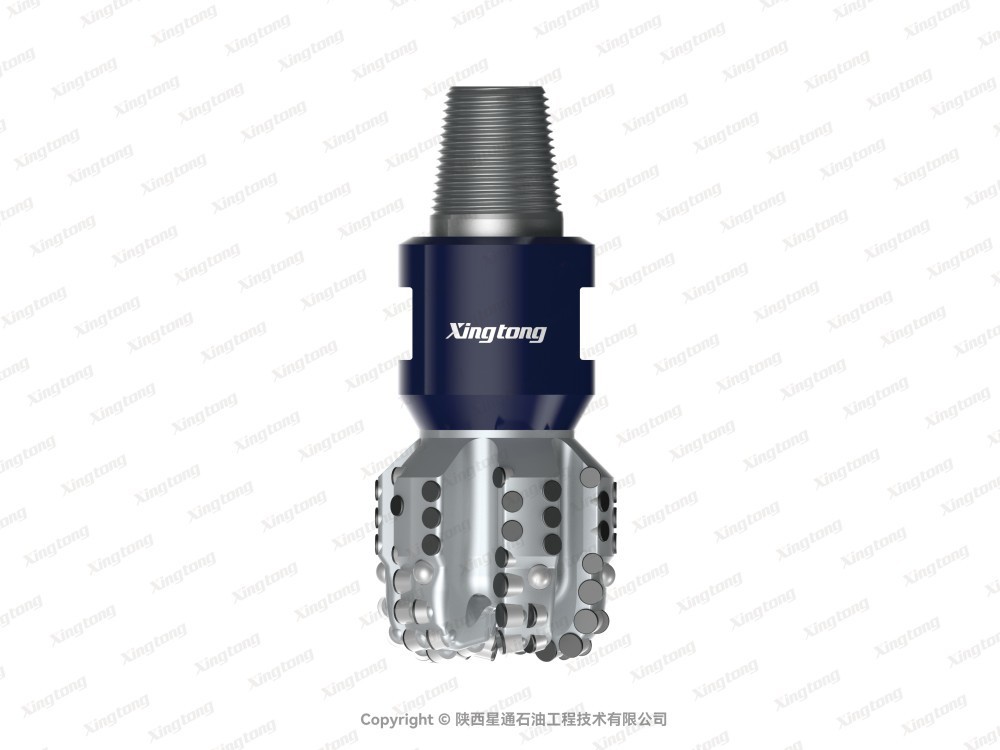

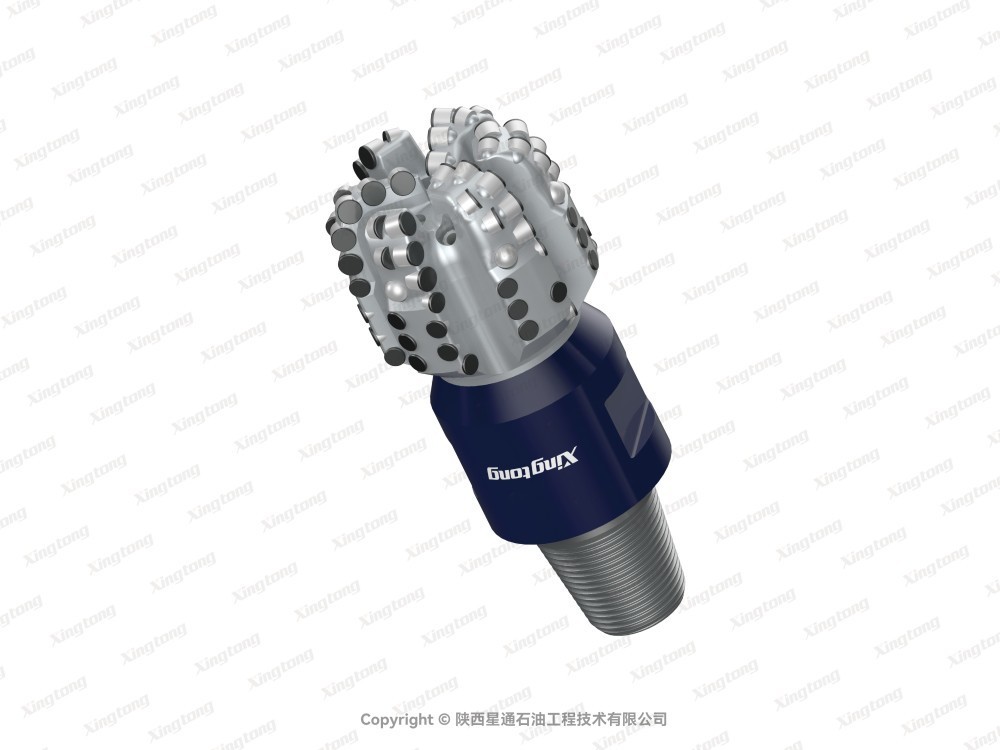

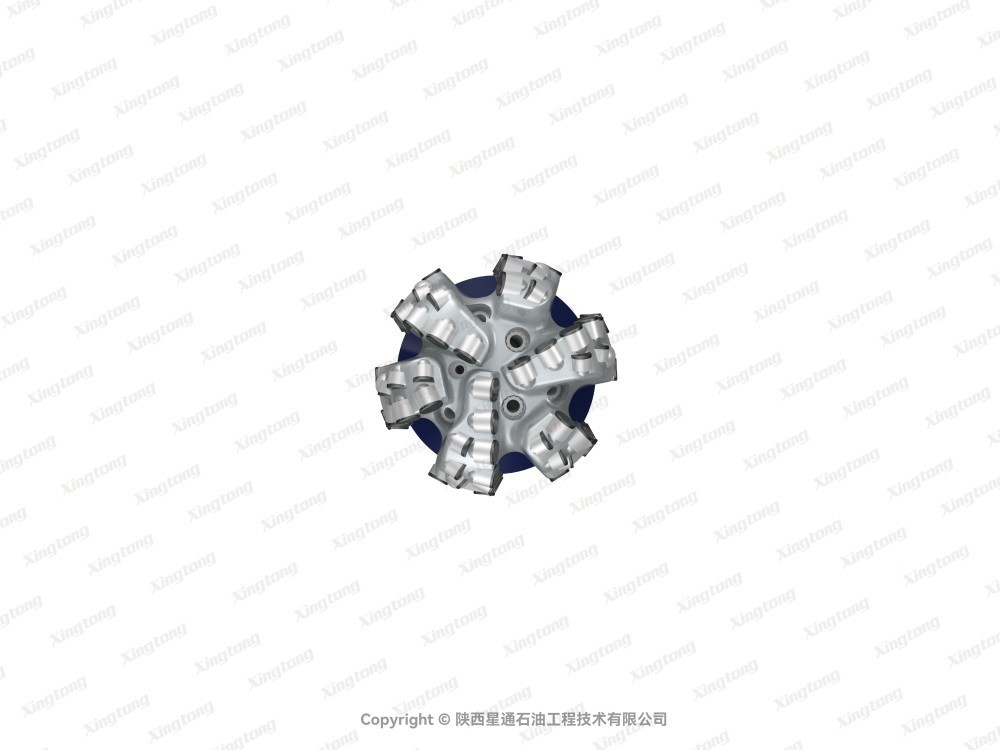

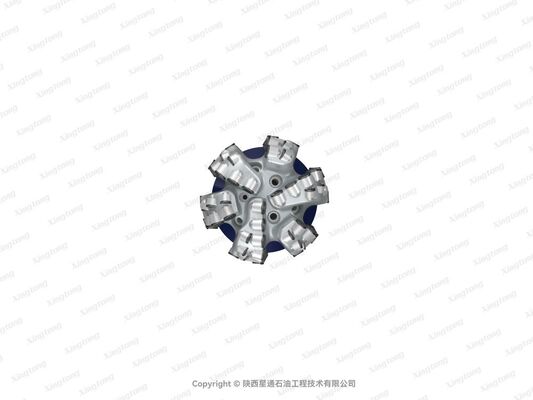

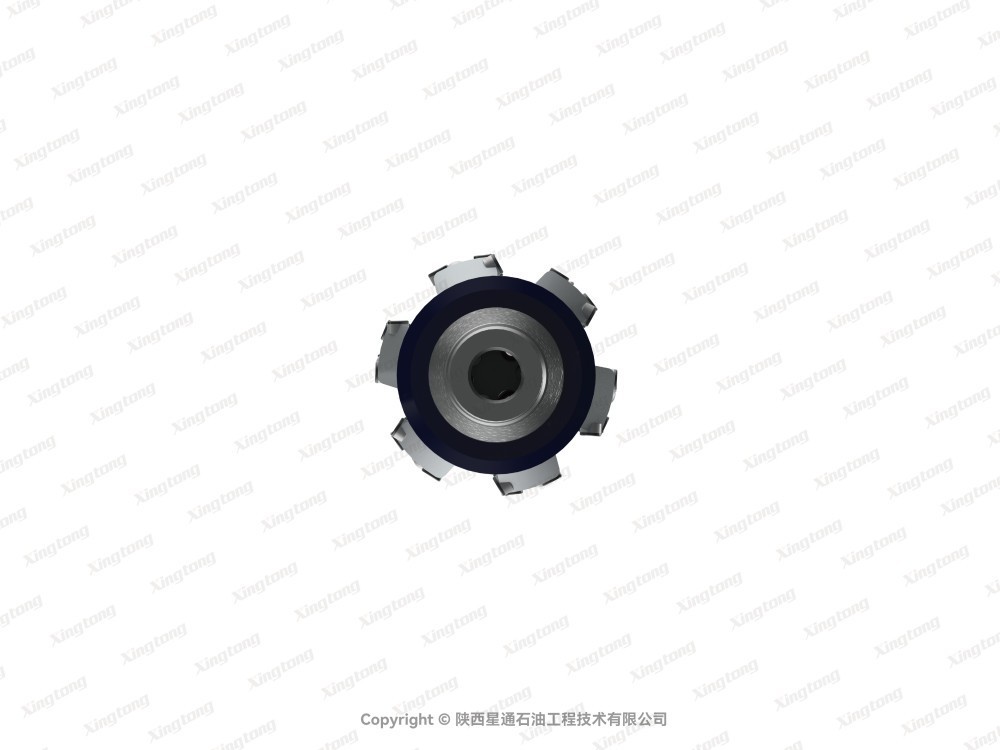

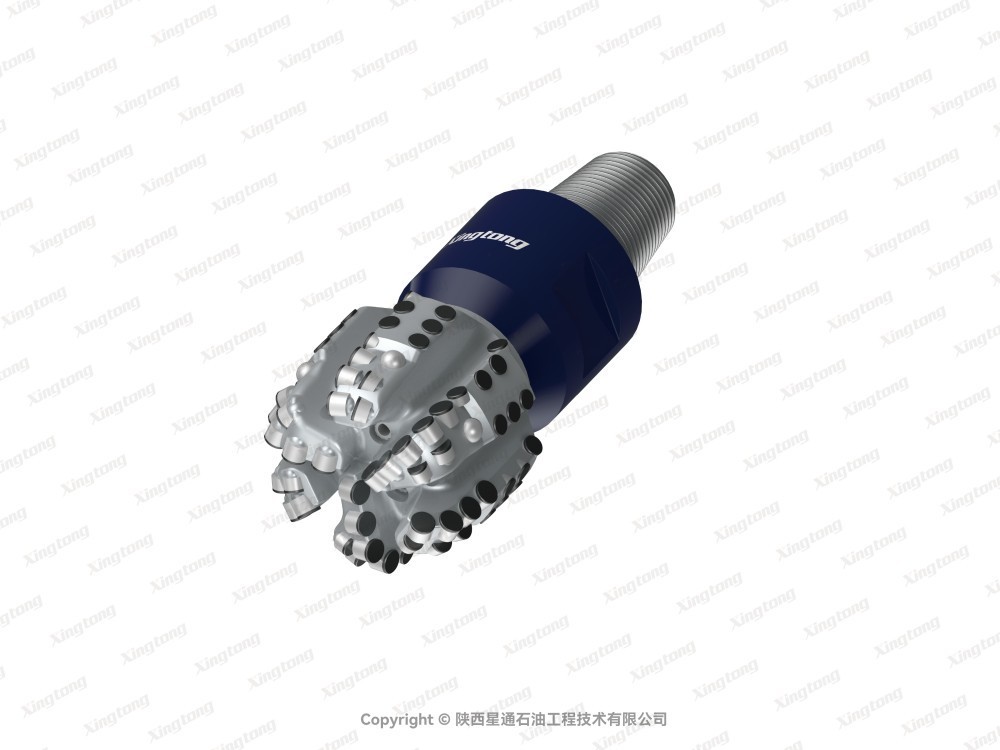

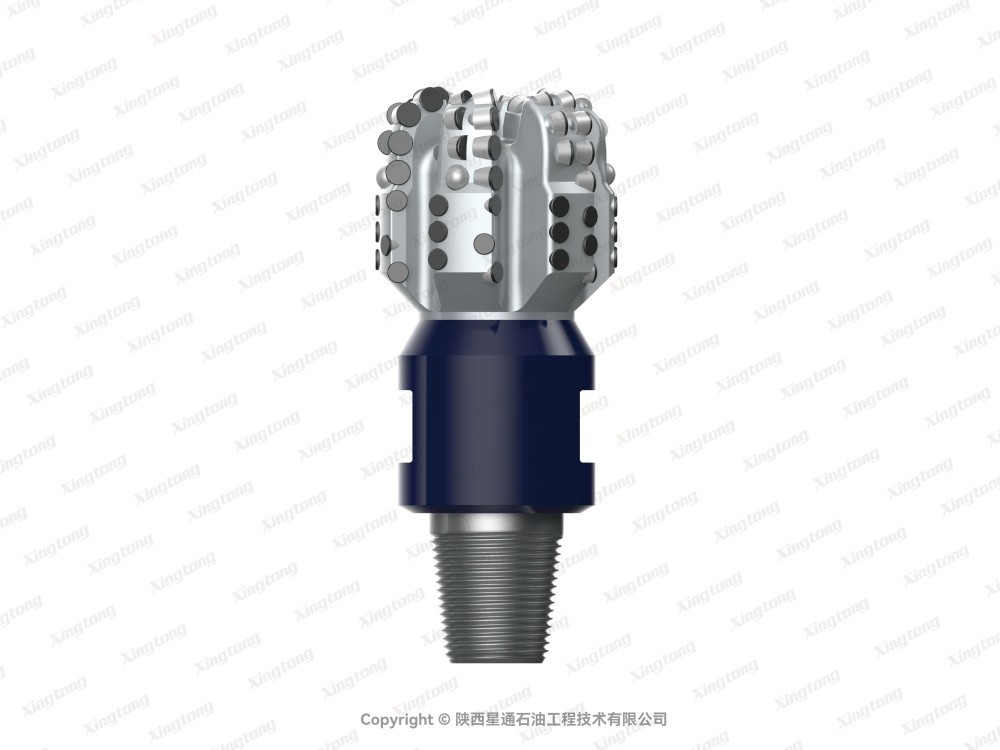

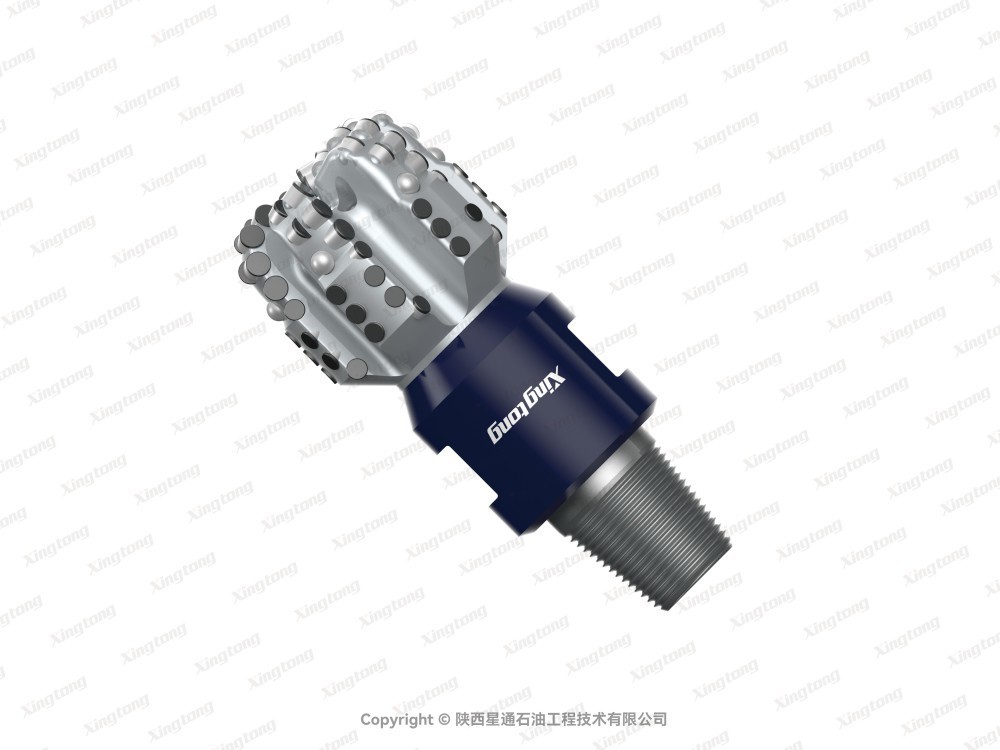

Xingtong Drill Bit 6 XH 6169 BK(24037)

  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
  • Xingtong Drill Bit 6 XH 6169 BK(24037)
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XH 6169 BK(24037)
Document 6 XH 6169 BK(24038).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S422
Body Type STEEL Face 47
Gauge 27 Updrill 6
Nozzle Type & Count M*5、D*1 Chip Removal Groove Area Ratio 41.8%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 52mm Make-Up Length 269mm
Approximate Shipping Weight 24kg Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T）
Total Flow Area 334mm^2
Highlight

PDC drill bit with tungsten carbide

,

Xingtong XH 6169 drill bit

,

6-inch PDC drill bit
Leave a Message
Product Description

  • Positioning

    The XH series is a high-durability drill bit lineup developed by Xingtong specifically for ultra-hard and highly abrasive formations, with the core objectives of extending bit life and maintaining stable penetration rates. In extremely hard formations, the XH series incorporates enhanced wear-resistant materials and an optimized structural design to achieve longer single-bit run times, reduce the number of make-up and break-out operations, and improve overall drilling efficiency.


    Technical Highlights

    1. Suitable for hard formations to enhance drill bit life and penetration rate.
    2. The optimized crown geometry ensures more uniform load distribution, reduces the load on individual teeth in the tooth root, and lowers the risk of core gouging.
    3. Select high-performance imported PDC cutters to enhance shoulder wear resistance and impact resistance, thereby extending the overall service life of the drill bit.
    4. A unique rear-flute design enhances drill-bit durability while maintaining its cutting aggressiveness.


    Applicable Operating Conditions

    Drilling operations in extremely hard and highly abrasive formations that demand longer tool life and higher penetration rates.
