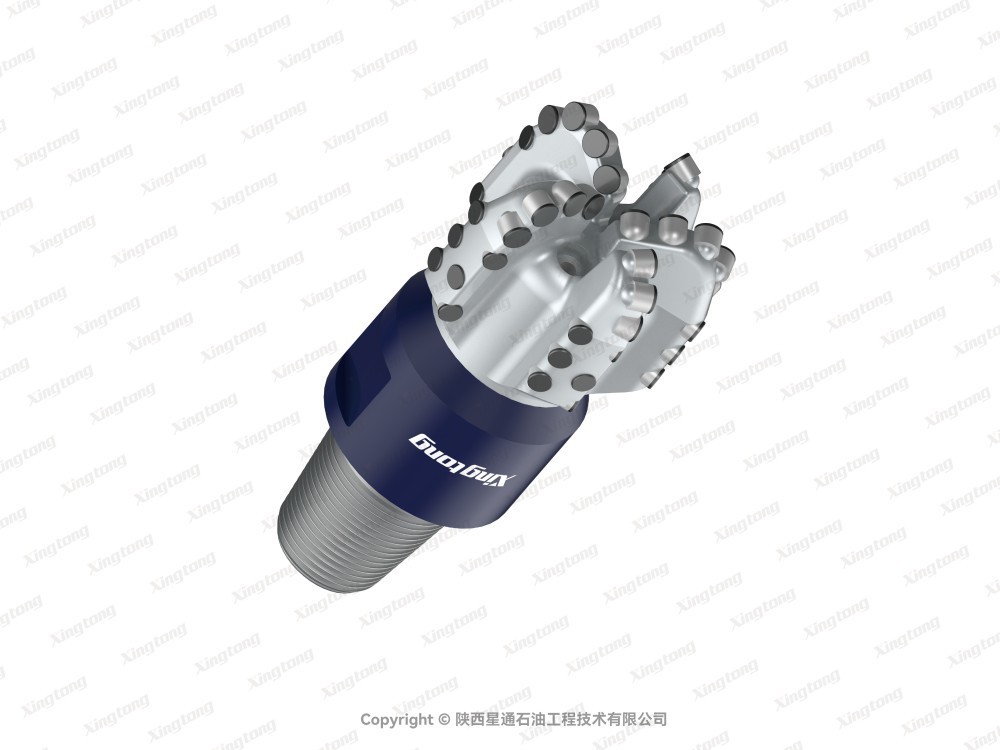

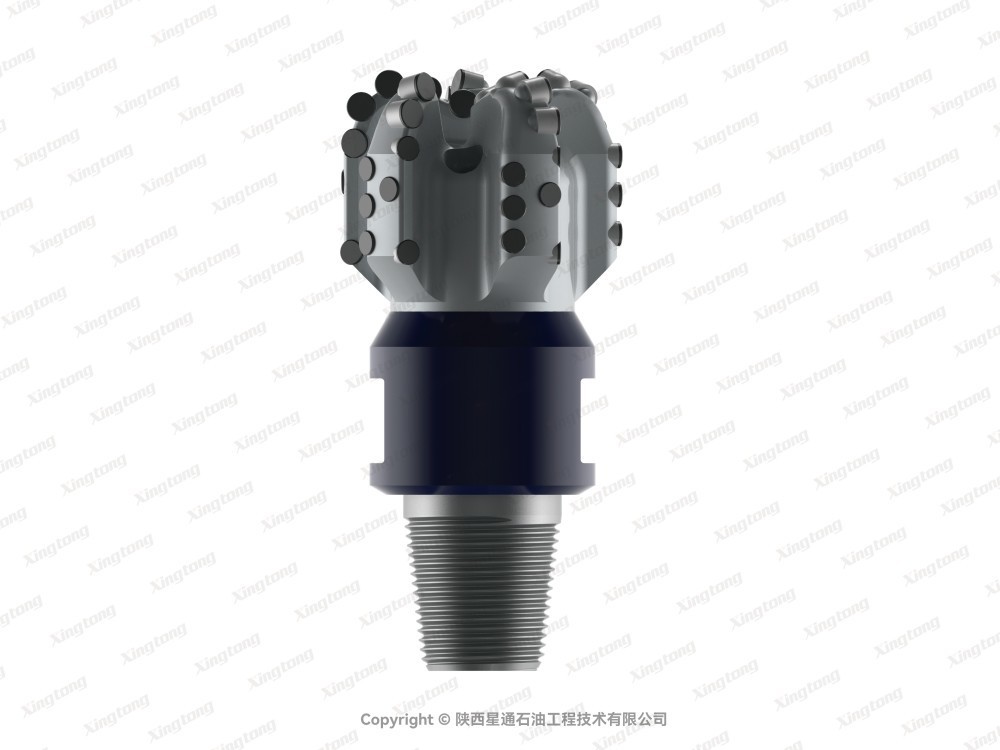

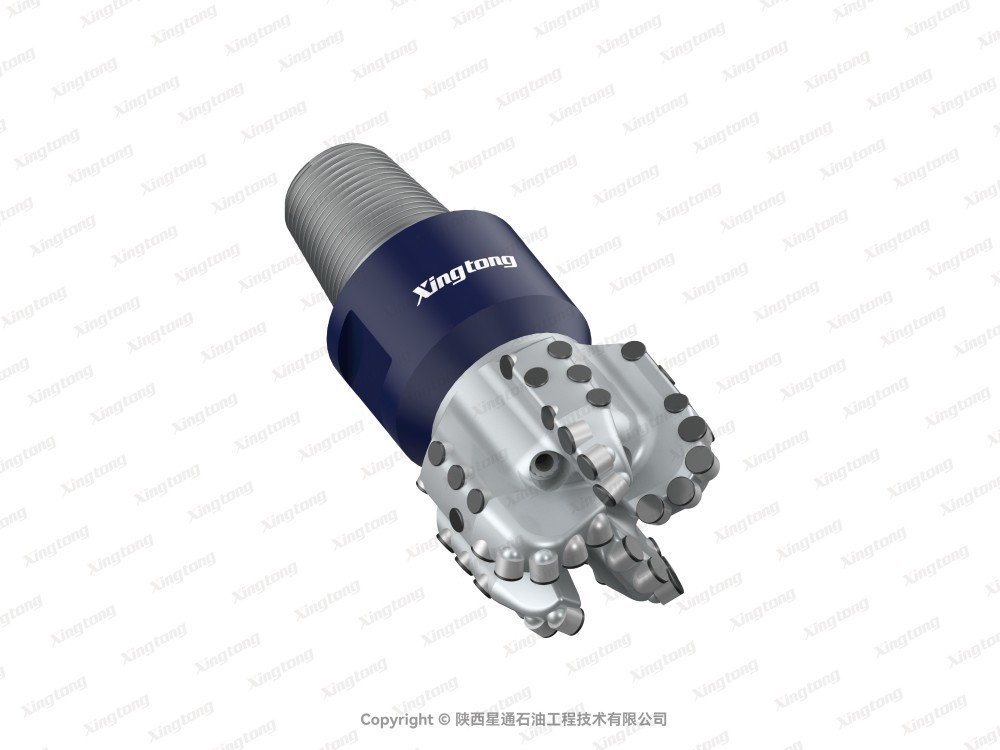

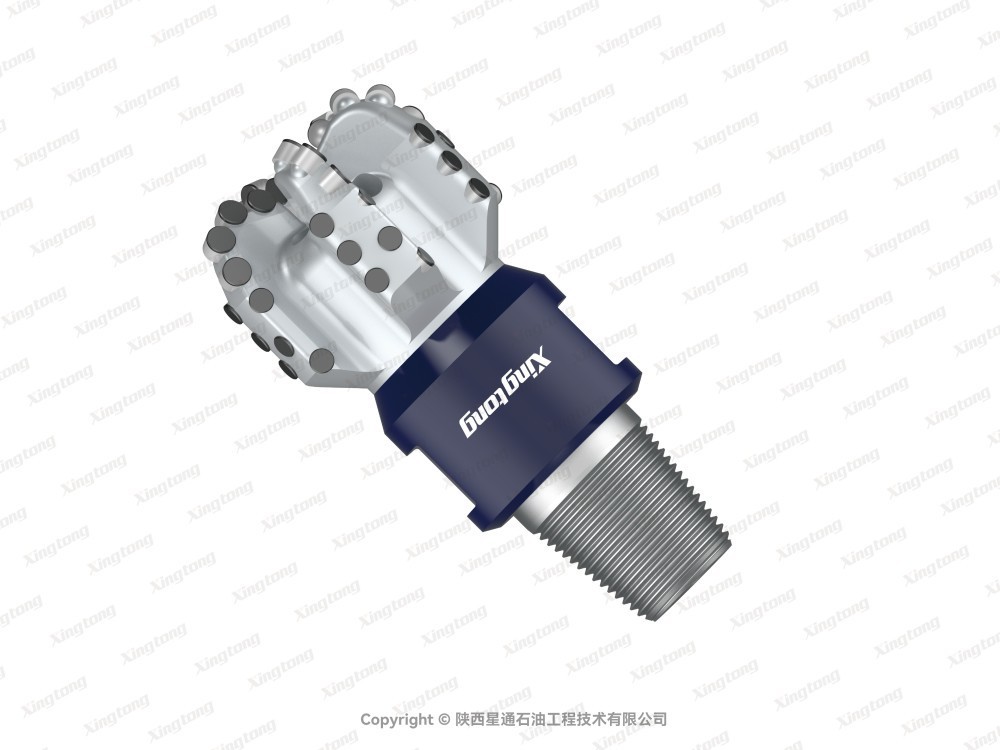

Xingtong Drill Bit 6 XHR S 5167 M(24025)

  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
  • Xingtong Drill Bit 6 XHR S 5167 M(24025)
Place of Origin CHINA
Brand Name XINGTONG
Certification API、ISO 9001
Model Number 6 XHR S 5167 M(24025)
Document 6 XHR S 5167 M(24026).pdf
Minimum Order Quantity 1 Picece(MOQ)
Price Negotiable
Packaging Details Standard Exported Package
Delivery Time 15-45 Days
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability Stable supply and support for bulk customization
Product Details
Cutter Grade GI IADC Code S322
Body Type STEEL Face 22
Gauge 20 Updrill 5
Nozzle Type & Count M*5 Chip Removal Groove Area Ratio 63.4%
API Connection 3-1/2REG Make-Up TQ 7.1-11.5KN.m
Gauge Length 51mm Make-Up Length 231mm
Recommended Weight On Bit（Maximum Acceptable） 10-12T （78T） Total Flow Area 289mm^2
Highlight

PDC drill bit for hard rock

,

Xingtong M(24025) drill bit

,

6 XHR S 5167 PDC bit
Leave a Message
Product Description

  • Positioning

    The XHR series is a high-RPM drill bit designed for high-speed drilling in soft formations. In operations aimed at achieving higher rate of penetration (ROP) in soft formations, the XHR bit leverages a unique tooth geometry configuration and hydraulic optimization to deliver efficient rock breakage and rapid cuttings removal, thereby significantly increasing drilling speed.


    Technical Highlights

    1. Suitable for high-speed drilling in soft formations.
    2. Optimize the irregularly shaped cutting teeth in the hybrid matrix to enhance rock-breaking efficiency while increasing the transport velocity of cuttings.
    3. Nozzles and flow passages optimized through CFD design deliver higher cuttings-carrying efficiency during high-speed drilling.
    4. The high-strength steel body enables a thinner cutter blade thickness, thereby preventing interference at the rear of the blade during high mechanical drilling rates.


    Applicable Operating Conditions

    Drilling intervals in soft to medium-hard formations that require accelerated penetration, where the goal is to achieve the highest possible mechanical drilling rate.
