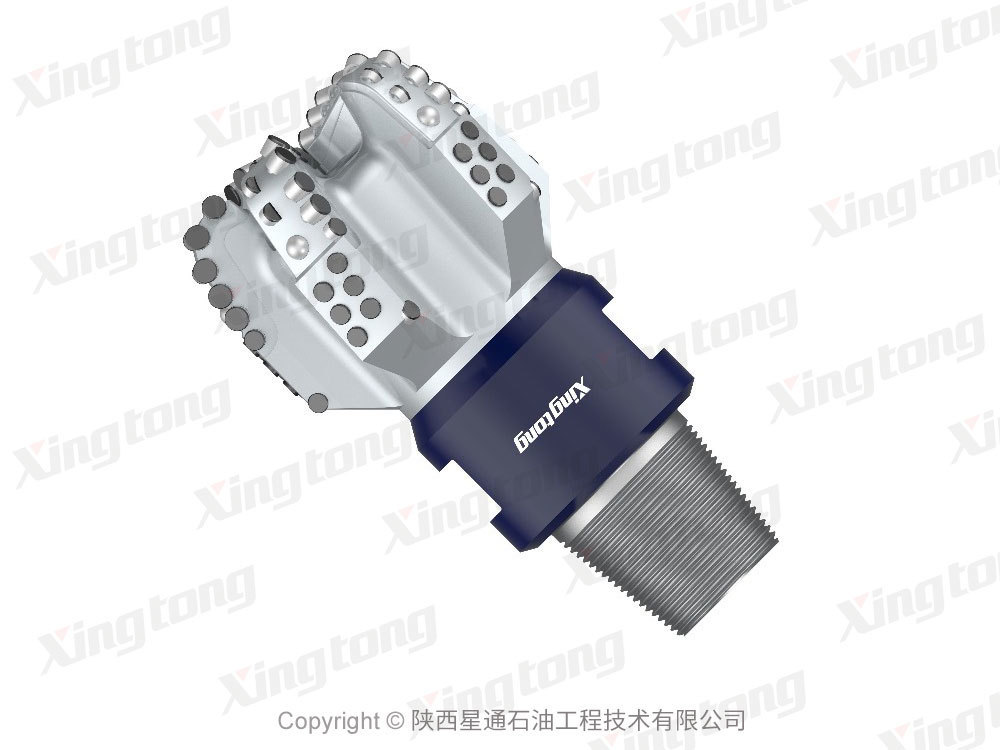

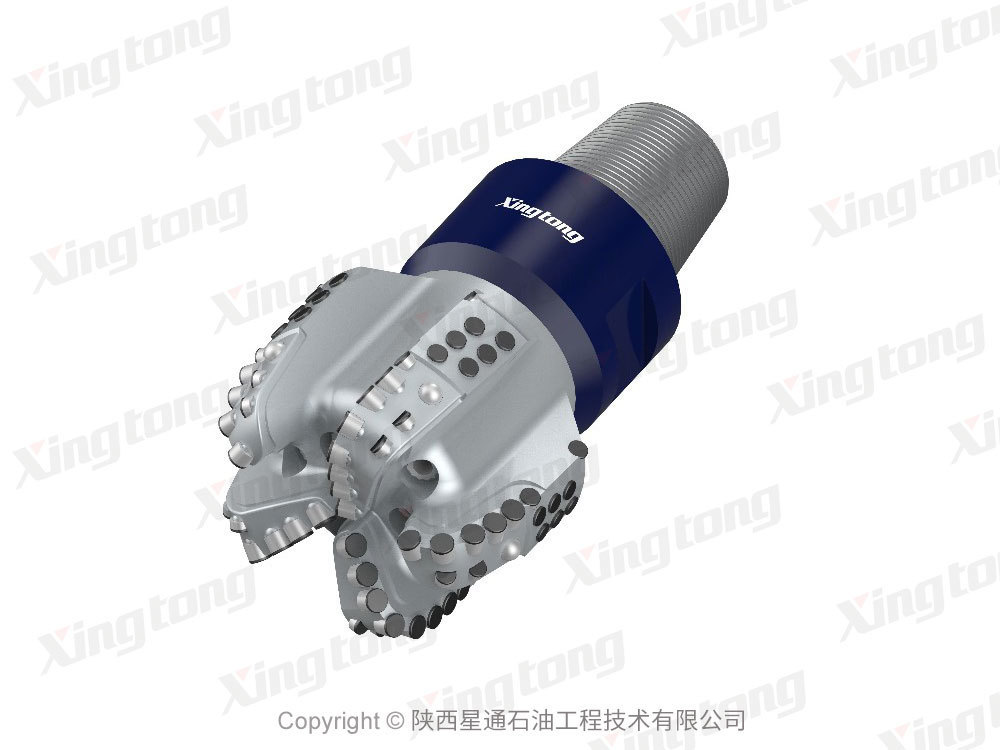

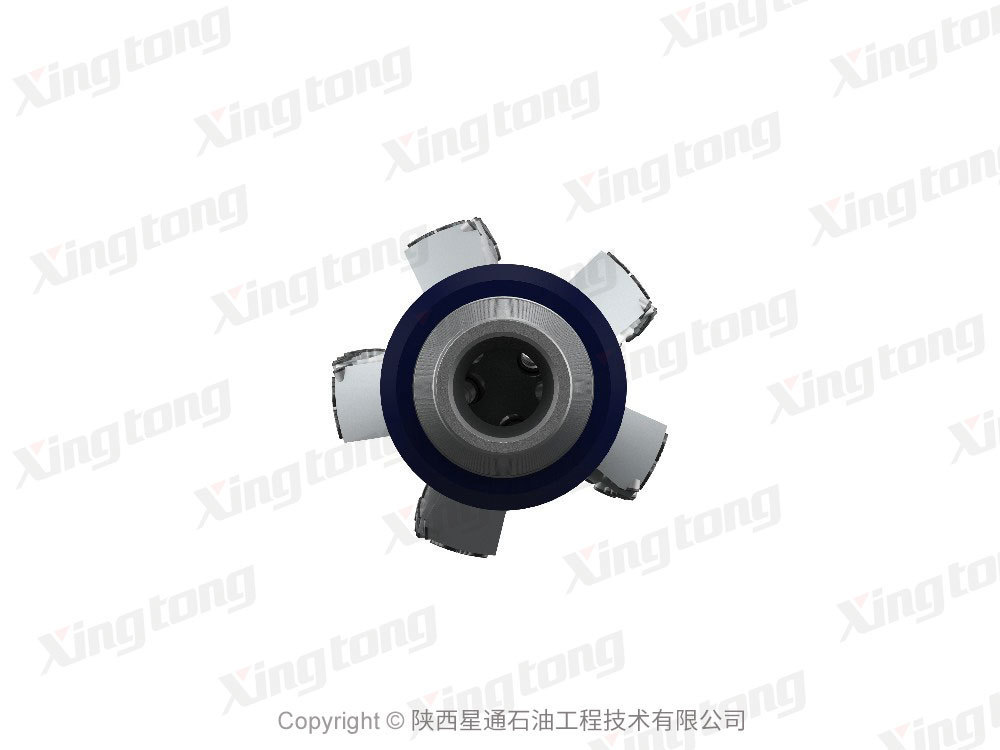

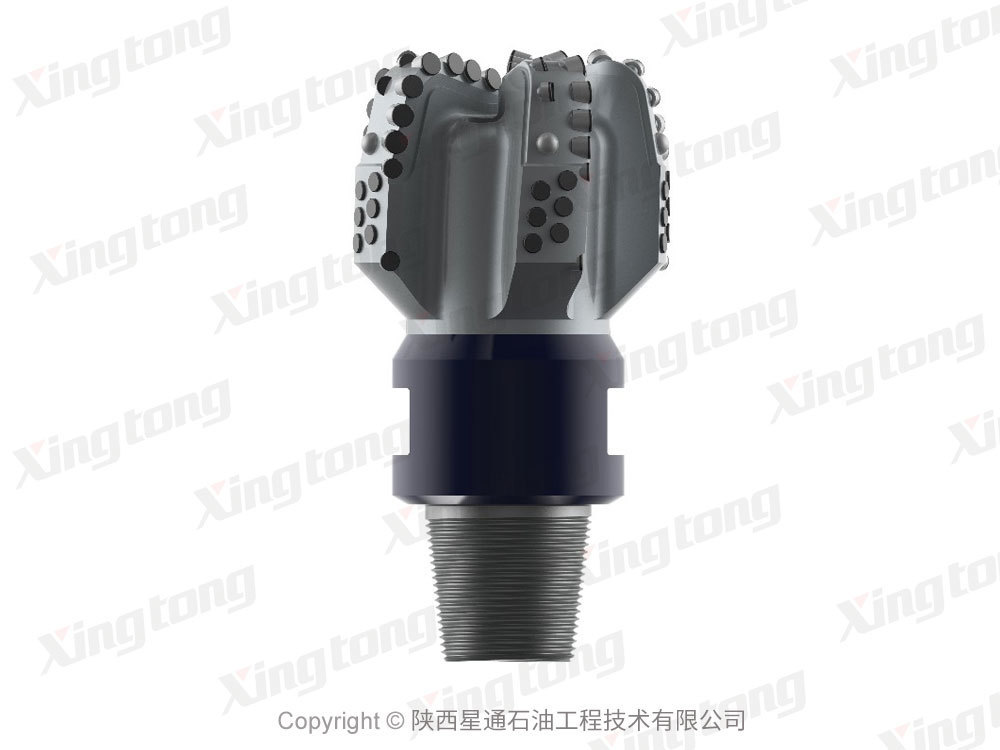

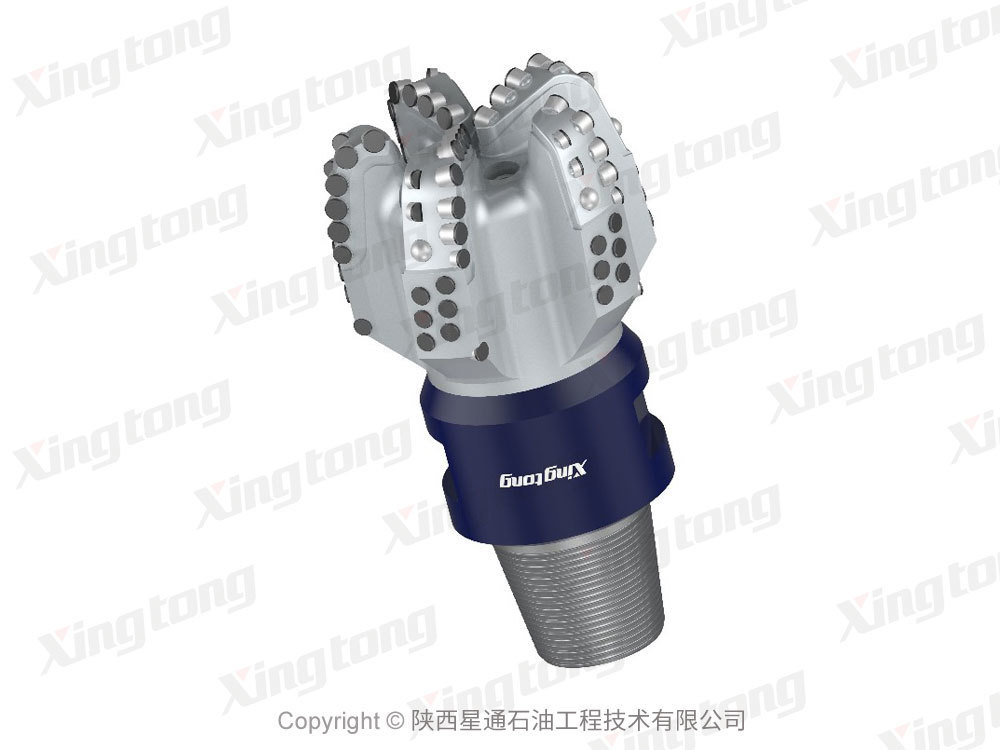

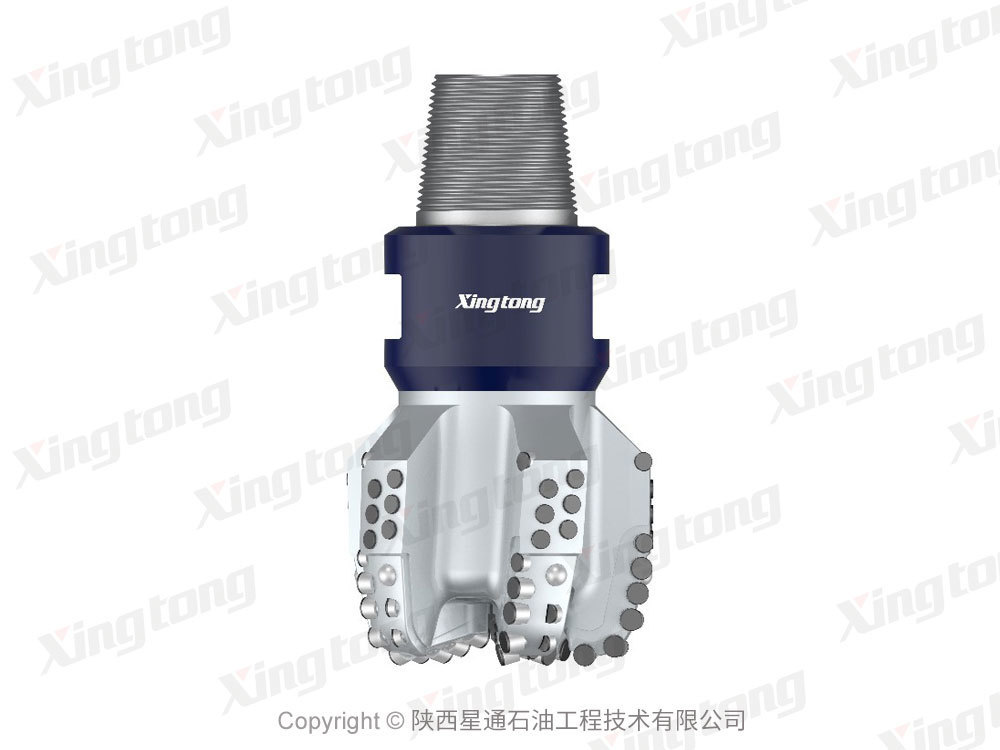

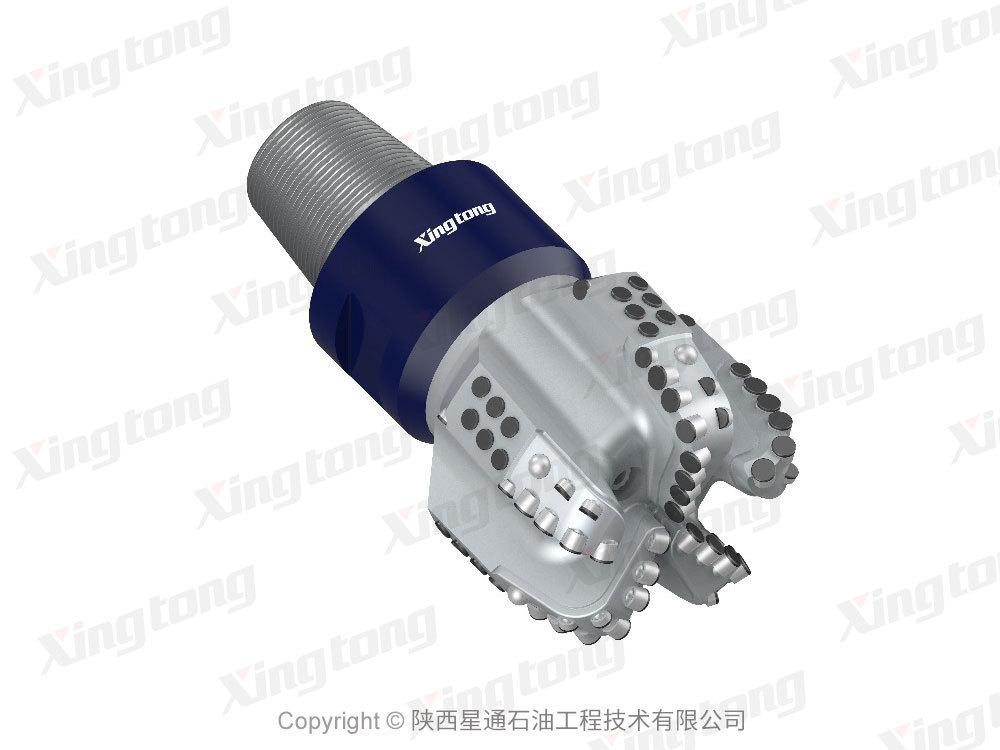

8 1/2 XHR S 5165 AU(24013)
| Place of Origin | CHINA |
|---|---|
| Brand Name | XINGTONG |
| Certification | API、ISO 9001 |
| Model Number | 8 1/2 XHR S 5165 AU(24013) |
| Document | 8 1.2 XHR 5165 AU(24013).pdf |
| Minimum Order Quantity | 1 Picece(MOQ) |
| Price | Negotiable |
| Packaging Details | Standard Exported Package |
| Delivery Time | 15-45 Days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | Stable supply and support for bulk customization |
Product Details
| Cutter Grade | GI | IADC Code | S323 |
|---|---|---|---|
| Body Type | STEEL | Face | 45 |
| Gauge | 30 | Updrill | 5 |
| Nozzle Type & Count | M*5 | Chip Removal Groove Area Ratio | 57.1% |
| API Connection | 4-1/2REG | Make-Up TQ | 17.0-26.4KN.m |
| Gauge Length | 66mm | Make-Up Length | 311mm |
| Approximate Shipping Weight | 45kg | Recommended Weight On Bit（Maximum Acceptable） | 14-16T（133T） |
| Total Flow Area | 485mm^2 | ||
| Highlight | PDC drill bit 8 1/2 inch,PDC drill bit XHR S,PDC drill bit 5165 AU |
||
Product Description
Positioning
The XHR series is a high-RPM drill bit designed for high-speed drilling in soft formations. In operations aimed at achieving higher rate of penetration (ROP) in soft formations, the XHR bit leverages a unique tooth geometry configuration and hydraulic optimization to deliver efficient rock breakage and rapid cuttings removal, thereby significantly increasing drilling speed.
Technical Highlights
1. Suitable for high-speed drilling in soft formations.
2. Optimize the irregularly shaped cutting teeth in the hybrid matrix to enhance rock-breaking efficiency while increasing the transport velocity of cuttings.
3. Nozzles and flow passages optimized through CFD design deliver higher cuttings-carrying efficiency during high-speed drilling.
4. The high-strength steel body enables a thinner cutter blade thickness, thereby preventing interference at the rear of the blade during high mechanical drilling rates.
Applicable Operating Conditions
Drilling intervals in soft to medium-hard formations that require accelerated penetration, where the goal is to achieve the highest possible mechanical drilling rate.
